This article is about the sixth-generation Dodge Charger (LX), produced from 2006 to 2010. Here you can find the 2006, 2007, 2008, 2009 and 2010 Dodge Charger fuse box images, get information about the location of the fuse boxes inside the car and learn about the allocation of each fuse (fuse layout).
The cigar lighter (socket) fuses are fuses №9 (console socket) and №18 (selector socket) in the rear power distribution centre.
Fuse box location
Engine compartment

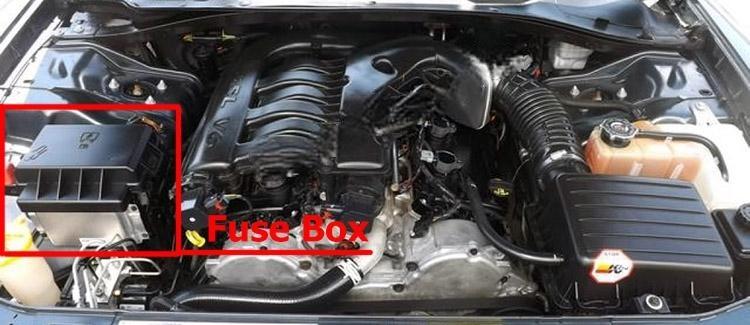

The fuse box is located in the engine compartment.

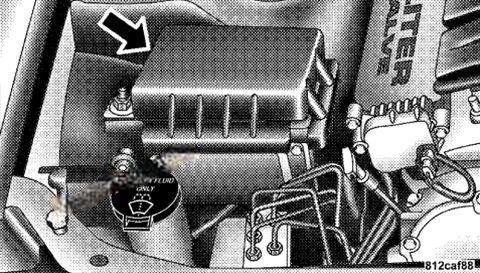

Front Power Distribution Center (2006-2007)

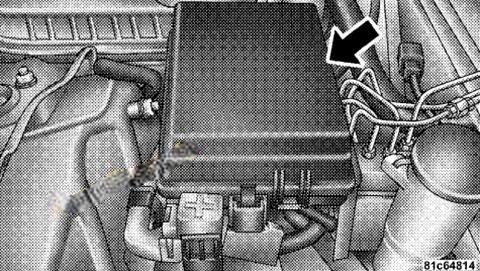

Integrated Power Module (2008-2010)
Rear Power Distribution Center (2006-2010)

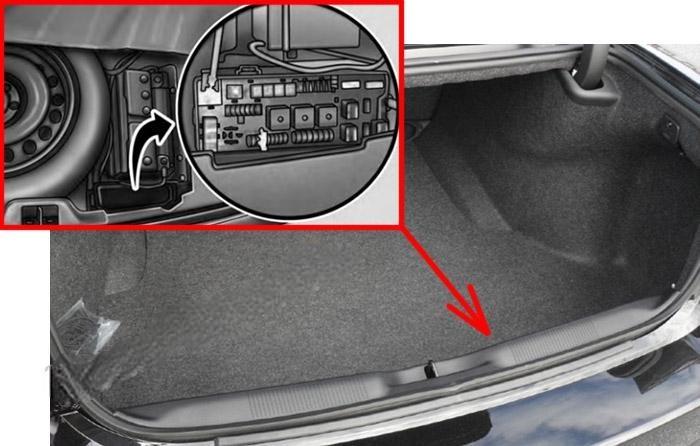

There is also a power distribution center located in the trunk under the spare tire access panel.
Fuse box diagrams
2006, 2007

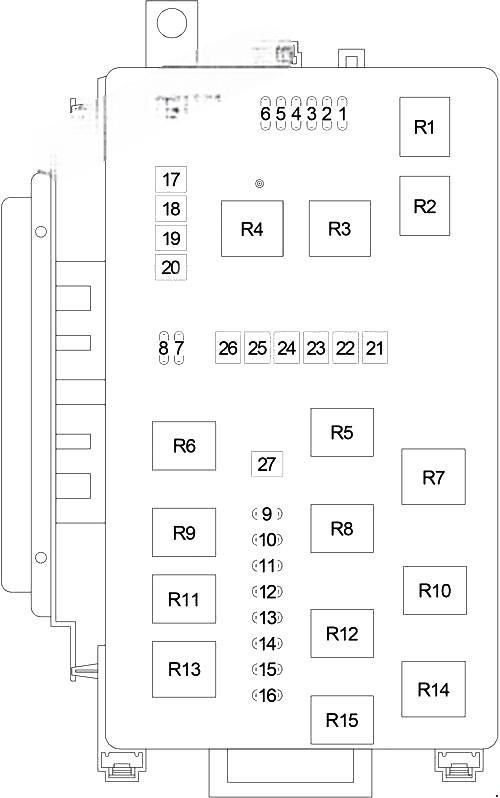

Front Power Distribution Center
Assignment of fuses in the Front PDC (2006, 2007)
| Cavity | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | — | — | — |
| 2 | — | — | — |
| 3 | — | 15 Amp Blue | Adjustable Pedals – if equipped |
| 4 | — | 20 Amp Yellow | AC Clutch/Horn |
| 5 | — | — | — |
| 6 | — | 15 Amp Blue | Front Control Module (FCM) |
| 7 | — | 20 Amp Yellow | Fog Lights – if equipped |
| 8 | — | 15 Amp Blue | Lights – License. Park. Side Marker. Stop. Turn |
| 9 | — | 15 Amp Blue | Front Control Module (FCM) |
| 10 | — | 5 Amp Orange | Powertrain Control Module (PCM)/Starter |
| 11 | 25 Amp Clear | Auto Shutdown/ Powertrain Control Module (PCM) | |
| 12 | — | — | — |
| 13 | — | — | — |
| 14 | — | 25 Amp Clear | Powertrain Control Module (PCM) |
| 15 | — | 20 Amp Yellow | Injectors. Ignition Coils |
| 16 | — | — | — |
| 17 | 30 Amp Pink | Anti-lock Brakes System (ABS) Valves – if equipped/Powertrain Control Module (PCM) | |
| 18 | 30 Amp Pink | — | Windshield Wiper/ Washer |
| 19 | 50 Amp Red | — | Radiator Fan |
| 20 | 20 Amp Blue | — | Starter |
| 21 | 50 Amp Red | — | Anti-lock Brakes System (ABS) Pump Motor – if equipped |
| 22 | 40 Amp — Green | — | AC Clutch/Radiator Fan High — Low |
| 23 | — | — | — |
| 24 | 60 Amp Yellow | — | Radiator Fan – AWD |
| 25 | 30 Amp Pink | — | Front Control Module (FCM) |
| 26 | 20 Amp — Blue | — | Transmission – RLE |
| 27 | 30 Amp — Pink | — | Front Control Module (FCM) |
| Relay | |||
| R1 | Horn | ||
| R2 | Air Conditioner Compressor Clutch | ||
| R3 | Radiator Fan Control (High/Low) | ||
| R4 | Radiator Fan (High) | ||
| R5 | Wiper On/Off | ||
| R6 | Transmission Control | ||
| R7 | Radiator Fan Control | ||
| R8 | Wiper High/Low | ||
| R9 | Starter | ||
| R10 | Adjustable Pedals | ||
| R11 | Park Lamp | ||
| R12 | Front Fog Lamp | ||
| R13 | Auto Shut Down | ||
| R14 | High Intensity Discharge Relay | ||
| R15 | Not Used |

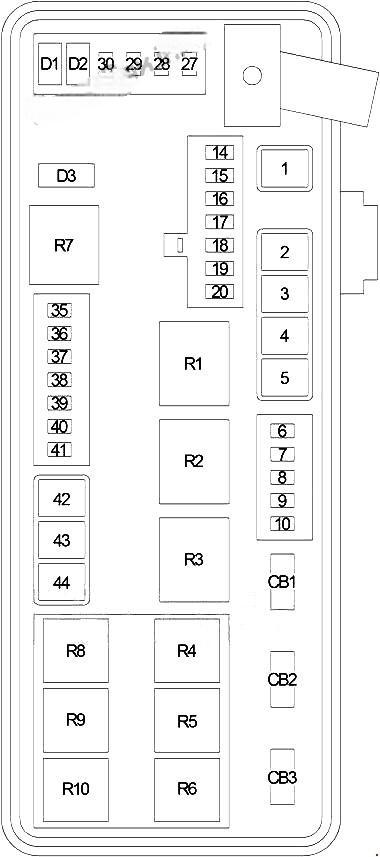

Rear Power Distribution Center
Assignment of fuses in the Rear PDC (2006, 2007)
| Cavity | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 60 Amp Yellow | — | Ignition Off Draw (IOD) |
| 2 | 40 Amp Green | — | Battery |
| 3 | — | — | — |
| 4 | 40 Amp Green | — | Battery |
| 5 | 30 Amp Pink | — | Heated Seats – if equipped |
| 6 | — | 20 Amp Yellow | Fuel Pump |
| 7 | — | — | — |
| 8 | — | 15 Amp Blue | Ignition Switch/Airbag Control Module (ACM) |
| 9 | — | 20 Amp Yellow | Console Power Outlet |
| 10 | — | — | — |
| CB1 | 25 amp circuit breaker | — | Cluster – without power memory seat/Driver Seat Switch – with power memory seat/Memory Module – if equipped (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| CB2 | 25 amp circuit breaker | — | Passenger Seat Switch (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| CB3 | 25 amp circuit breaker | — | Door Modules – except base/ Driver Door Lock Switch – base/Driver Express Power Window Switch – if equipped/ Passenger Door Lock Switch – base (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| 14 | 10 Amp Red | AC Heater Control/ Cluster/Sentry Key Remote Keyless Entry | |
| 15 | — | 20 Amp Yellow | Trailer Tow Brake Module – if equipped |
| 16 | — | — | — |
| 17 | — | 20 Amp Yellow | Cluster |
| 18 | — | 20 Amp Yellow | Selectable Power Outlet |
| 19 | — | 10 Amp Red | Stop Lights |
| 20 | — | — | — |
| 21 | — | — | — |
| 22 | — | — | — |
| 23 | — | — | — |
| 24 | — | — | — |
| 25 | — | — | — |
| 26 | — | — | — |
| 27 | — | 10 Amp Red | Airbag/Airbag Control Module (ACM) |
| 28 | — | 10 Amp Red | Curtain Airbag – if equipped |
| 29 | 5 Amp Orange | Anti-lock Brakes Module – if equipped/Cluster/ Front Control Module (FCM)/Powertrain Control Module (PCM)/ Sentry Key Remote Keyless Entry/Stop Lights | |
| 30 | 10 Amp Red | Door Modules/Power Mirrors – if equipped/ Steering Control Module | |
| 31 | — | — | — |
| 32 | — | — | — |
| 33 | — | — | — |
| 34 | — | — | — |
| 35 | 5 Amp Orange | Amplifier – if equipped/ Antenna/Ignition Delay/Overhead Console/Passenger Door Lock & Express Power Window Switch – if equipped/Power Mirrors – if equipped/Rear Defrost | |
| 36 | 20 Amp Yellow | Hands Free Phone – if equipped/Media System Monitor DVD – if equipped/Radio/ Satellite Receiver – if equipped | |
| 37 | — | 15 Amp Blue | Transmission – NAG1 |
| 38 | — | 5 Amp Orange | Cargo Light/Overhead Console |
| 39 | — | 10 Amp Red | Heated Mirrors – if equipped |
| 40 | 5 Amp Orange | Heated Seats – if equipped/Inside Rearview Mirror | |
| 41 | 10 Amp Red | AC Heater Control/Tire Pressure Monitoring – if equipped | |
| 42 | 30 Amp Pink | — | Front Blower Motor |
| 43 | 30 Amp Pink | — | Amplifier – if equipped/ Antenna/Rear Defrost |
| 44 | 20 Amp Blue | — | Amplifier – if equipped/ Front Control Module (FCM)/Sunroof – if equipped |
| Relay | |||
| R1 | Run | ||
| R2 | Rear Window Defogger | ||
| R3 | Accessory Delay | ||
| R4 | Transmission Control | ||
| R5 | Rear Fog Lamp | ||
| R6 | Rear Wiper | ||
| R7 | Not Used | ||
| R8 | Stop Lamp | ||
| R9 | Fuel Pump | ||
| R10 | Not Used |
2008
Integrated Power Module
Assignment of fuses in the IPM (2008)
| Cavity | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | — | 15 Amp Blue | Washer Motor |
| 2 | — | 25 Amp Neutral | Powertrain Control Module (PCM) |
| 3 | — | 25 Amp Neutral | Ignition Run/Start |
| 4 | — | 25 Amp Neutral | Alternator/EGR Solenoid |
| 5 | — | — | — |
| 6 | — | 25 Amp Neutral | Ignition Coils/Injectors/ Short Runner Valve |
| 7 | — | — | — |
| 8 | — | 25 Amp Neutral | Starter |
| 9 | — | — | — |
| 10 | 30 Amp Pink | — | Windshield Wiper |
| 11 | 30 Amp Pink | — | Anti-lock Brakes System (ABS) Valves – if equipped |
| 12 | 40 Amp — Green | — | Radiator Fan |
| 13 | 50 Amp Red | — | Anti-lock Brakes System (ABS) Pump Motor – if equipped |
| 14 | 60 Amp Yellow | — | Radiator Fan |
| 15 | 50 Amp — Red | — | Radiator Fan |
| 16 | — | — | — |
| 17 | — | — | — |
| 18 | — | — | — |
| 19 | — | — | — |
| 20 | — | — | — |
| 21 | — | — | — |
| 22 | — | — | — |

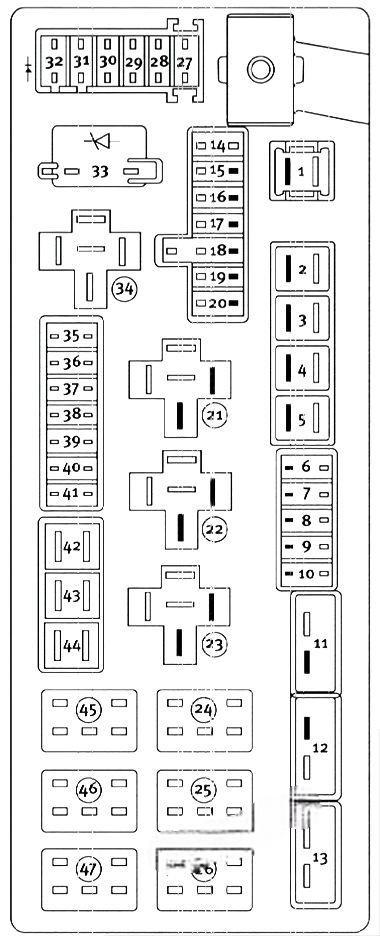

Rear Power Distribution Center
Assignment of fuses in the Rear PDC (2008)
| Cavity | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 60 Amp Yellow | — | Ignition Off Draw’ (IOD) |
| 2 | 40 Amp Green | — | Integrated Power Module (IPM) |
| 3 | — | — | — |
| 4 | 40 Amp Green | — | Integrated Power Module (IPM) |
| 5 | 30 Amp Pink | — | Heated Seats – if equipped |
| 6 | — | 20 Amp Yellow | Fuel Pump |
| 7 | — | — | — |
| 8 | 15 Amp Blue | Diagnostic Link Connector (DLC)/Wireless Control Module (WCM)/ Wireless Ignition Node (WIN) | |
| 9 | — | 20 Amp Yellow | Power Outlet |
| 10 | — | — | — |
| 11 | 25 amp circuit breaker | — | The Cluster and the Driver Seat Switch (if equipped) (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| 12 | 25 amp circuit breaker | — | The Passenger Seat Switch (if equipped) (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| 13 | 25 amp circuit breaker | — | The Door Modules, the Driver Power Window Switch, and the Passenger Power Window Switch (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| 14 | 10 Amp Red | AC Heater Control/ Cluster/Security Module – if equipped | |
| 15 | — | 20 Amp Yellow | Trailer Tow Brake Module – if equipped |
| 16 | — | — | — |
| 17 | — | 20 Amp Yellow | Cluster |
| 18 | — | 20 Amp Yellow | Selectable Power Outlet |
| 19 | — | 10 Amp Red | Stop Lights |
| 20 | — | — | — |
| 21 | — | — | — |
| 22 | — | — | — |
| 23 | — | — | — |
| 24 | — | — | — |
| 25 | — | — | — |
| 26 | — | — | — |
| 27 | — | 10 Amp Red | Occupant Restraint Controller (ORC) |
| 28 | — | 10 Amp Red | Ignition Run |
| 29 | — | 5 Amp Orange | Cluster/Electronic Stability Program (ESP) – if equipped/Powertrain Control Module (PCM)/ Stop Light Switch |
| 30 | 10 Amp Red | Door Modules/Power Mirrors/Steering Control Module (SCM) | |
| 31 | — | — | — |
| 32 | — | — | — |
| 33 | — | — | — |
| 34 | — | — | — |
| 35 | 5 Amp Orange | Antenna Module – if equipped/Power Mirrors | |
| 36 | 20 Amp Yellow | Hands Free Phone – if equipped/Video Monitor – if equipped/Radio | |
| 37 | — | 15 Amp Blue | Transmission |
| 38 | 10 Amp Red | Cargo Light/Satellite Receiver (SDARS) Video – if equipped/Vehicle Information Module – if equipped | |
| 39 | — | 10 Amp Red | Heated Mirrors – if equipped |
| 40 | 5 Amp Orange | Auto Inside Rearview Mirror – if equipped/ Heated Seats – if equipped/Switch Bank | |
| 41 | 10 Amp Red | AC Heater Control/ Head lights/Tire Pressure Monitoring – if equipped | |
| 42 | 30 Amp Pink | — | Front Blower Motor |
| 43 | 30 Amp Pink | — | Rear Window Defroster |
| 44 | 20 Amp Blue | — | Amplifier – if equipped/ Sunroof – if equipped |
2009
Integrated Power Module
Assignment of fuses in the IPM (2009)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | — | 15 Amp Blue | Washer Motor |
| 2 | — | 25 Amp Neutral | Powertrain Control Module (PCM) |
| 3 | — | 25 Amp Neutral | Ignition Run/Start |
| 4 | — | 25 Amp Neutral | Alternator/EGR Solenoid |
| 5 | — | — | — |
| 6 | — | 25 Amp Neutral | Ignition Coils/Injectors/ Snort Runner Valve |
| 7 | — | — | — |
| 8 | — | 25 Amp Neutral | Starter |
| 9 | — | — | — |
| 10 | 30 Amp — Pink | — | Windshield Wiper |
| 11 | 30 Amp — Pink | — | Anti-Lock Brake System (ABS) Valves – if equipped |
| 12 | 40 Amp Green | — | Radiator Fan |
| 13 | 50 Amp — Red | — | Anti-Lock Brake System (ABS) Pump Motor – if equipped |
| 14 | — | — | — |
| 15 | 50 Amp — Red | — | Radiator Fan |
| 16 | — | — | — |
| 17 | — | — | — |
| 18 | — | — | — |
| 19 | — | — | — |
| 20 | — | — | — |
| 21 | — | — | — |
| 22 | — | — | — |
Rear Power Distribution Center
Assignment of fuses in the Rear PDC (2009)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | 60 Amp Yellow | — | Ignition Off Draw (IOD) |
| 2 | 40 Amp Green | — | Integrated Power Module (1PM) |
| 3 | — | — | — |
| 4 | 40 Amp Green | — | Integrated Power Module (1PM) |
| 5 | 30 Amp Pink | — | Heated Seats – if equipped |
| 6 | — | 20 Amp Yellow | Fuel Pump |
| 7 | — | — | — |
| 8 | 15 Amp Blue | Diagnostic Link Connector (DLC)/Wireless Control Module (WCM)/ Wireless Ignition Node (WIN) | |
| 9 | — | 20 Amp Yellow | Power Outlet |
| 10 | — | — | — |
| 11 | 25-Amp circuit breaker | — | The cluster and the driver seat switch (if equipped) (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| 12 | 25-Amp circuit breaker | — | The passenger seat switch (if equipped) (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| 13 | 25-Amp circuit breaker | — | The door modules, the driver power window switch, and the passenger power window switch (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| 14 | 10 Amp Red | AC Heater Control/ Cluster/Security Module – if equipped | |
| 15 | — | 20 Amp Yellow | Trailer Tow Brake Module – if equipped |
| 16 | — | — | — |
| 17 | — | 20 Amp Yellow | Cluster |
| 18 | — | 20 Amp Yellow | Selectable Power Outlet |
| 19 | — | 10 Amp Red | Stop Lights |
| 20 | — | — | — |
| 21 | — | — | — |
| 22 | — | — | — |
| 23 | — | — | — |
| 24 | — | — | — |
| 25 | — | — | — |
| 26 | — | — | — |
| 27 | — | 10 Amp Red | Occupant Restraint Controller (ORC) |
| 28 | — | 10 Amp Red | Ignition Run |
| 29 | 5 Amp Orange | Cluster/Electronic Stability Program (ESP) – if equipped / Powertrain Control Module (PCM)/ STOP LIGHT Switch | |
| 30 | 10 Amp Red | Door Modules/Power Mirrors/Steering Control Module (SCM) | |
| 31 | — | — | — |
| 32 | — | — | — |
| 33 | — | — | — |
| 34 | — | — | — |
| 35 | 5 Amp Orange | Antenna Module – if equipped/Power Mirrors | |
| 36 | 20 Amp Yellow | Hands-Free Phone – if equipped/Video Monitor – if equipped /Radio | |
| 37 | — | 15 Amp Blue | Transmission |
| 38 | 10 Amp Red | Cargo Light/Satellite Receiver (SDARS) Video – if equipped/Vehicle Information Module – if equipped | |
| 39 | — | 10 Amp Red | Heated Mirrors – if equipped |
| 40 | 5 Amp Orange | Auto Inside Rearview Mirror – if equipped/ Heated Seats – if equipped/Switch Bank | |
| 41 | 10 Amp Red | AC Heater Control/ Headlights/Tire Pressure Monitoring – if equipped | |
| 42 | 30 Amp Pink | — | Front Blower Motor |
| 43 | 30 Amp Pink | — | Rear Window Defroster |
| 44 | 20 Amp Blue | — | Amplifier – if equipped/ Sunroof – if equipped |
2010

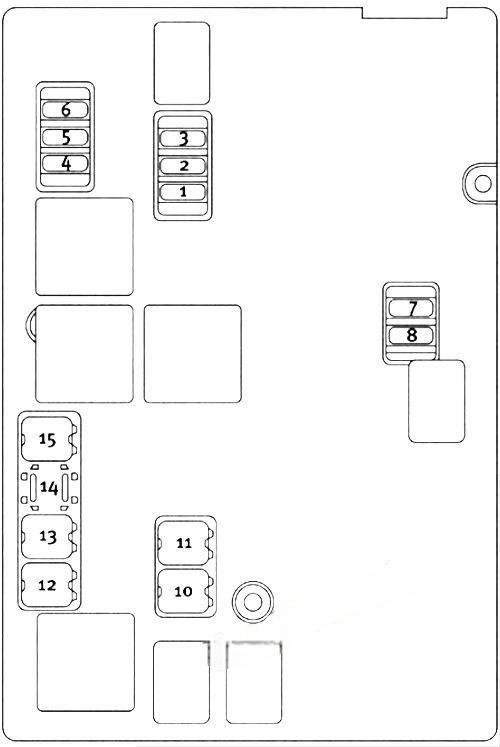

Integrated Power Module
Assignment of fuses in the IPM (2010)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | — | 15 Amp Blue | Washer Motor |
| 2 | — | 25 Amp Natural | Powertrain Control Module (PCM) |
| 3 | — | 25 Amp Natural | Ignition Run/Start |
| 4 | — | 25 Amp Natural | Altemator/EGR Solenoid |
| 5 | — | 15 Amp Blue | Diesel PCM – If Equipped |
| 6 | — | 25 Amp Natural | Ignition Coils/Injectors/ Short Runner Valve |
| 7 | — | 25 Amp Natural | Headlamp Washer Relay – If Equipped |
| 8 | — | 30 Amp Green | Starter |
| 9 | — | — | — |
| 10 | 30 Amp Pink | — | Windshield Wiper |
| 11 | 30 Amp Pink | Anti-Lock Brake System (ABS) Valves – If Equipped | |
| 12 | 40 Amp Green | — | Radiator Fan |
| 13 | 50 Amp Red | Anti-Lock Brake System (ABS) Pump Motor – If Equipped | |
| 14 | — | — | — |
| 15 | 50 Amp Red | — | Radiator Fan |
| 16 | — | — | — |
| 17 | — | — | — |
| 18 | — | — | — |
| 19 | — | — | — |
| 20 | — | — | — |
| 21 | — | — | — |
| 22 | — | — | — |
Rear Power Distribution Center
Assignment of fuses in the Rear PDC (2010)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | 60 Amp Yellow | — | Ignition Off Draw (IOD) (Cavity 1 of the Rear Power Distribution Center contains a black IOD fuse needed for vehicle processing during assembly. The service replacement part is a 60 Amp yellow cartridge fuse.) |
| 2 | 40 Amp Green | — | Integrated Power Module (IPM) |
| 3 | — | — | — |
| 4 | 40 Amp Green | — | Integrated Power Module (IPM) |
| 5 | 30 Amp Pink | — | Heated Seats – If Equipped |
| 6 | — | 20 Amp Yellow | Fuel Pump |
| 7 | — | — | — |
| 8 | — | 15 Amp Blue | Diagnostic Link Connector (DLC)/Wireless Control Module (WCM)/ Wireless Ignition Node (WIN) |
| 9 | — | 20 Amp Yellow | Power Outlet |
| 10 | — | — | — |
| 11 | 25 Amp circuit breaker | — | The cluster and the driver seat switch (if equipped) (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| 12 | 25 Amp circuit breaker | — | The passenger seat switch (if equipped) (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| 13 | 25 Amp circuit breaker | — | The door modules, the driver power window switch, and the passenger power window switch (Cavities 11, 12, and 13 contain self-resetting fuses (circuit breakers) that are only serviceable by an authorized dealer) |
| 14 | 10 Amp Red | AC Heater Control/ Cluster/Security Module – If Equipped | |
| 15 | — | 20 Amp Yellow | Trailer Tow Brake Module – If Equipped |
| 16 | — | — | — |
| 17 | — | 20 Amp Yellow | Cluster |
| 18 | — | 20 Amp Yellow | Selectable Power Outlet |
| 19 | — | 10 Amp Red | Stop Lights |
| 20 | — | — | — |
| 21 | — | — | — |
| 22 | — | — | — |
| 23 | — | — | — |
| 24 | — | — | — |
| 25 | — | — | — |
| 26 | — | — | — |
| 27 | — | 10 Amp Red | Occupant Restraint Controller (ORC) |
| 28 | — | 10 Amp Red | Ignition Run, AC Heater Control/Headlights/ Occupant Restraint Controller (ORC) |
| 29 | — | 5 Amp Orange | Cluster/Electronic Stability Program (ESP) – If Equipped/Powertrain Control Module (PCM)/ STOP LIGHT Switch |
| 30 | — | 10 Amp Red | Door Modules/Power Mirrors/Steering Control Module (SCM) |
| 31 | — | — | — |
| 32 | — | — | — |
| 33 | — | — | — |
| 34 | — | — | — |
| 35 | — | 5 Amp Orange | Antenna Module – If Equipped/Power Mirrors |
| 36 | — | 20 Amp Yellow | Hands-Free Phone – If Equipped/Video Monitor – If Equipped/Radio |
| 37 | — | 15 Amp Blue | Transmission |
| 38 | — | 10 Amp Red | Cargo Light/Satellite Receiver (SDARS) Video – If Equipped/Vehicle Information Module – If Equipped |
| 39 | — | 10 Amp Red | Heated Mirrors – If Equipped |
| 40 | — | 5 Amp Orange | Auto Inside Rearview Mirror – If Equipped/ Heated Seats – If Equipped/Switch Bank |
| 41 | — | — | — |
| 42 | 30 Amp Pink | — | Front Blower Motor |
| 43 | 30 Amp Pink | — | Rear Window Defroster |
| 44 | 20 Amp Blue | — | Amplifier – If Equipped/Sunroof – If Equipped |
