Diagnosing and Fixing Parasitic Battery Drain 🔋🔍
Table of Contents
Stop Waking Up to a Dead Battery—Find and Fix Hidden Power Drains Yourself!
1. What is Parasitic Drain? (And Why It’s a Problem) ⚡
Parasitic drain occurs when your car’s electrical systems keep drawing power after the ignition is off, slowly killing the battery. Normal drain is 20–50mA (milliamps), but problems arise when it exceeds 100mA.
- Risks: Dead battery, stranded trips, alternator strain.
- Common Culprits: Trunk lights, aftermarket gadgets, faulty modules, stuck relays.
Key Stat: 30% of “dead battery” cases are due to excessive parasitic drain (AAA).
2. Tools You’ll Need 🧰
| Tool | Purpose | Cost |
|---|---|---|
| Digital multimeter | Measure current draw | 20–50 |
| Fuse puller | Test circuits safely | $5 |
| Battery terminal brush | Clean corrosion | $8 |
| Test light (optional) | Quick circuit checks | $10 |
| Repair manual | Wiring diagrams | Free (online PDFs) |
Pro Tip: Use a multimeter with a 10A current setting for accuracy.
3. Step-by-Step Diagnosis Guide 📋
Step 1: Prep Your Car
- Turn off everything: Lights, radio, AC. Close doors/trunk.
- Disconnect the negative battery terminal.
- Wait 30 minutes: Let modules enter “sleep mode.”

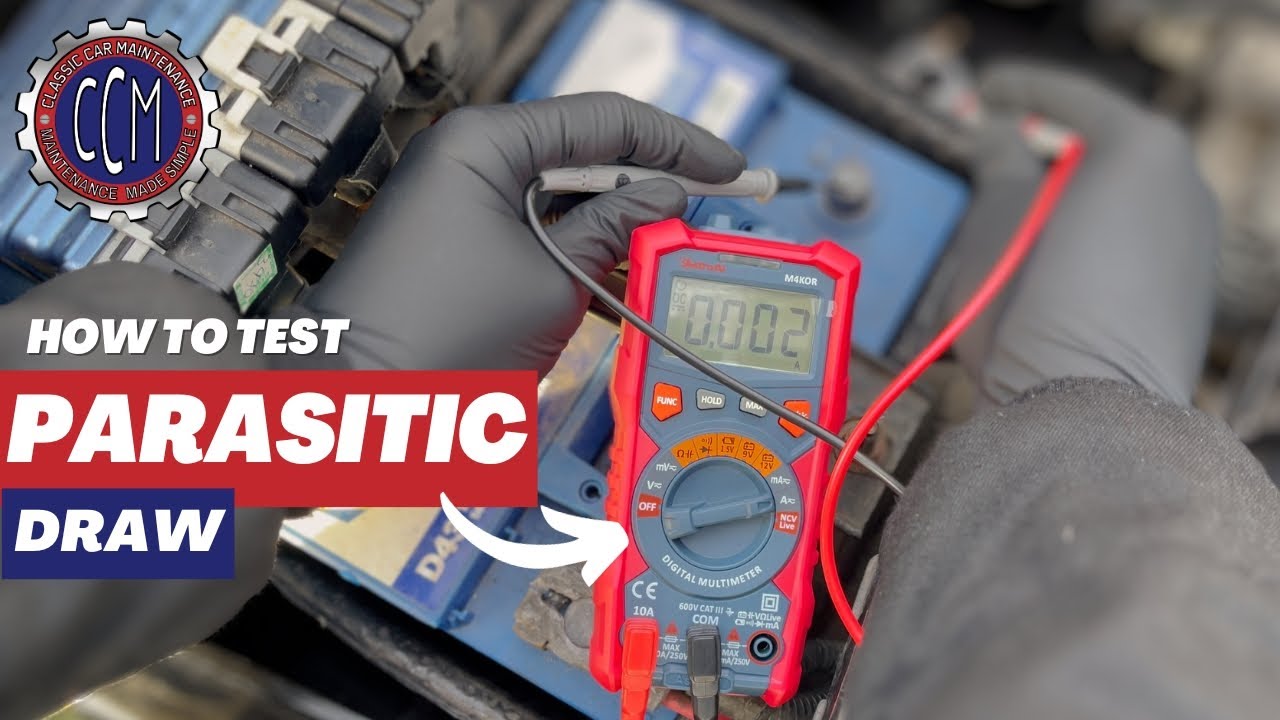

Step 2: Test for Excessive Drain
- Set multimeter to DC amps (10A range).
- Connect between battery negative post and terminal:
- Normal: 20–50mA.
- Problem: 100mA+.
Step 3: Identify the Culprit Circuit
- Pull fuses one by one (start with aftermarket accessories, interior lights).
- Watch multimeter: A drop to ~50mA pinpoints the faulty circuit.

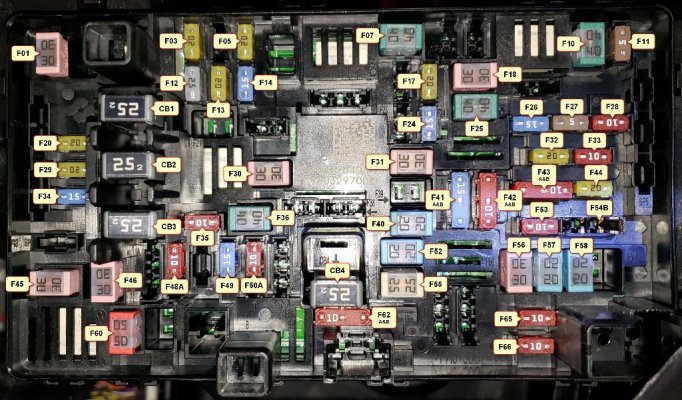

- Check the fuse diagram to identify components on that circuit.
4. Common Causes & Fixes 🛠️
A. Aftermarket Accessories
- Symptoms: Dash cams, alarms, or USB chargers left plugged in.
- Fix: Unplug devices or install a relay to cut power when off.
B. Stuck Relay or Module
- Symptoms: Clicking noises, flickering lights.
- Fix: Tap relays to unstick them; replace faulty ones (10–30).
C. Trunk/Dome Light Stays On
- Symptoms: Light visible when closed; switch malfunction.
- Fix: Adjust latch sensor or replace switch ($15).
D. Faulty Alternator Diode
- Symptoms: Battery drains overnight despite new battery.
- Fix: Test alternator diode with a multimeter; replace alternator if needed.
5. Top 5 Products to Combat Drain 🛒
| Product | Purpose | Price |
|---|---|---|
| INNOVA 3340 Multimeter | Precise current measurement | $50 |
| NOCO GENIUS5 Battery Charger | Recharge drained batteries | $75 |
| AstroAI Fuse Puller | Safely remove mini/standard fuses | $7 |
| Battery Disconnect Switch | Kill power manually | $15 |
| AES WaveTech Battery Saver | Monitor drain in real time | $30 |
6. 7 Costly Mistakes to Avoid ❌
- Skipping Sleep Mode: Modules draw extra power for 15–30 minutes after shutdown.
- Testing with Doors Open: Triggers interior lights, skewing results.
- Ignoring Corrosion: Dirty terminals mimic drain symptoms.
- Using Wrong Multimeter Setting: Blows fuses in the meter.
- Overlooking Glove Box Lights: Often missed in checks.
- Forgetting the Trunk: Latches and lights are common culprits.
- Mishandling Fuses: Forcing them breaks clips.
7. FAQs ❓🌟
Q1: How much parasitic drain is normal?
A: 20–50mA (milliamps). Anything over 100mA needs fixing.
Q2: Can a bad battery cause parasitic drain?
A: No—drain is caused by external circuits, but a weak battery dies faster.
Q3: Will disconnecting the battery stop drain?
A: Temporarily yes, but it’s a band-aid fix.
Q4: How long until a parasitic drain kills my battery?
A: 1–3 days for a 100mA drain; 12–24 hours for 500mA+.
Q5: Can I use a test light instead of a multimeter?
A: Yes, but it’s less precise. A dim glow indicates minor drain; bright light = major issue.
8. Free Parasitic Drain Checklist 📝
[🔗 Download Your Free PDF Here]
Includes:
- Step-by-step testing guide.
- Common circuit culprits by car model.
- Multimeter settings cheat sheet.
Final Pro Tips 🌟
- Label Fuses: Use tape to mark tested ones.
- Check for Recalls: Some models (e.g., Ford Focus) have known drain issues.
- Install a Battery Monitor: Track drain in real time via Bluetooth.
🚗 Share this guide to help friends avoid jump-starting nightmares! 🚗
