This extensive PDF collection contains the complete, official Workshop and Maintenance Manuals for the DAF LF45 (7.5 to 12 tonnes) and LF55 (12 to 19 tonnes) series commercial trucks. Intended for professional diesel mechanics, fleet service centers, and heavy-duty technicians, these manuals provide the in-depth technical data required to perform major repairs, routine fleet maintenance, and complex system troubleshooting.
The manuals cover the following critical technical topics in detail:
- Engine Mechanics and Servicing: Complete procedures for servicing PACCAR engines used in the LF series. Includes critical specifications such as cold valve clearances (Inlet: 0.15 – 0.40 mm; Exhaust: 0.40 – 0.75 mm), tightening torques, and fuel system overhauls.
- Chassis, Suspension, and Steering: Detailed repair guides for the front/rear axles and suspension components. Features precise torque setting tables, such as shock absorber attachment bolts (250 Nm), torque rod ball joints (88 Nm), and air bellows bolts (32 Nm).

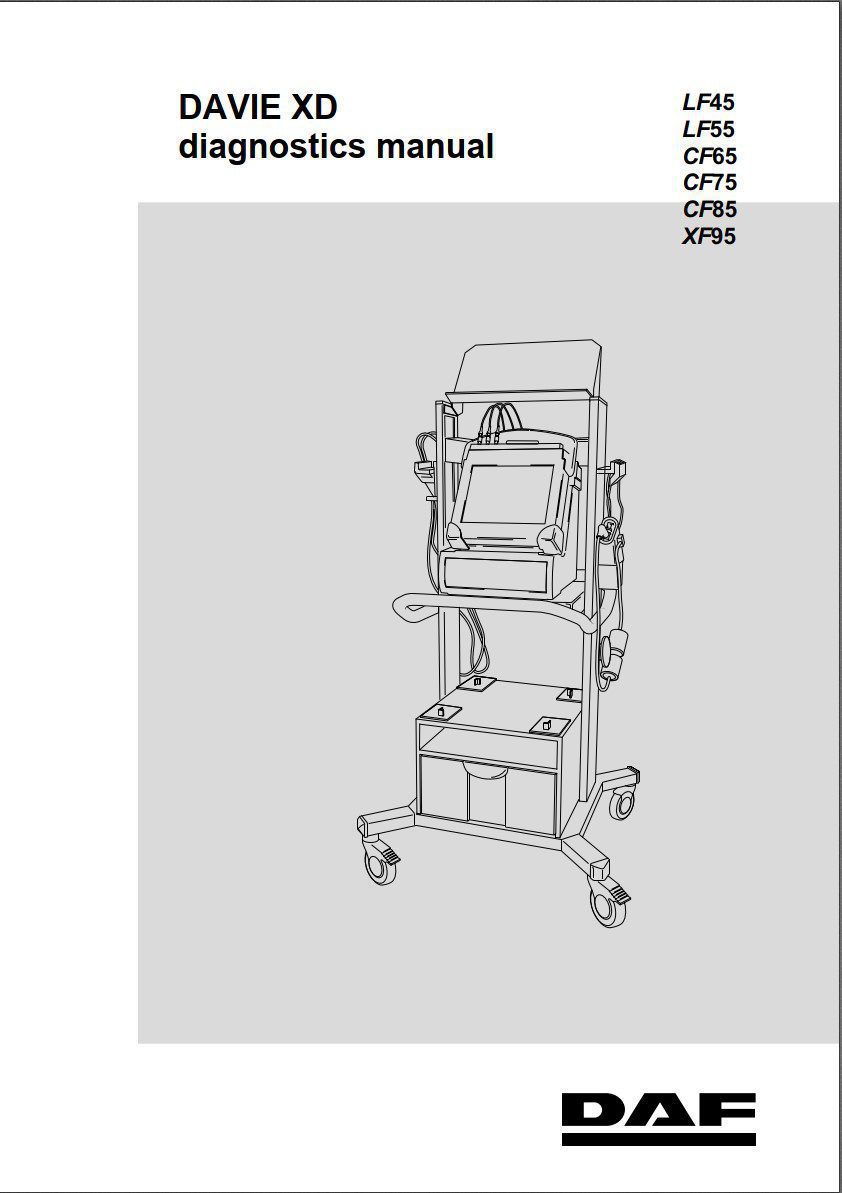

- Electrical and Diagnostics: Comprehensive factory electrical wiring diagrams and pinouts. Includes fuse box layouts (e.g., E031 for the heater fan, E035 for instruments/parking brake switch) and guidance for using DAVIE XD diagnostic tools for fault code reading and PTO parameter settings.
- Braking and Transmission: In-depth service instructions for the braking system (including ABS/EBS), gearbox maintenance, and retarder servicing.
- Maintenance Schedules: Extensive periodic maintenance tables outlining specific inspection intervals, fluid capacities, lubrication points, and wear limits to ensure compliance with DAF factory standards.
Whether you need to properly torque suspension components, adjust valve clearances, or trace an electrical fault in the instrument cluster, this Workshop Manual collection is an essential tool for maintaining the reliability and uptime of the DAF LF45 and LF55 series.
Language: English
Format: PDF
Pages: 2880
