DAF LF, CF, XF Truck Fault Codes DTC CDM

DAF LF45 LF55 CF65 CF75 CF85 XF95 Trucks Fault Codes DTC

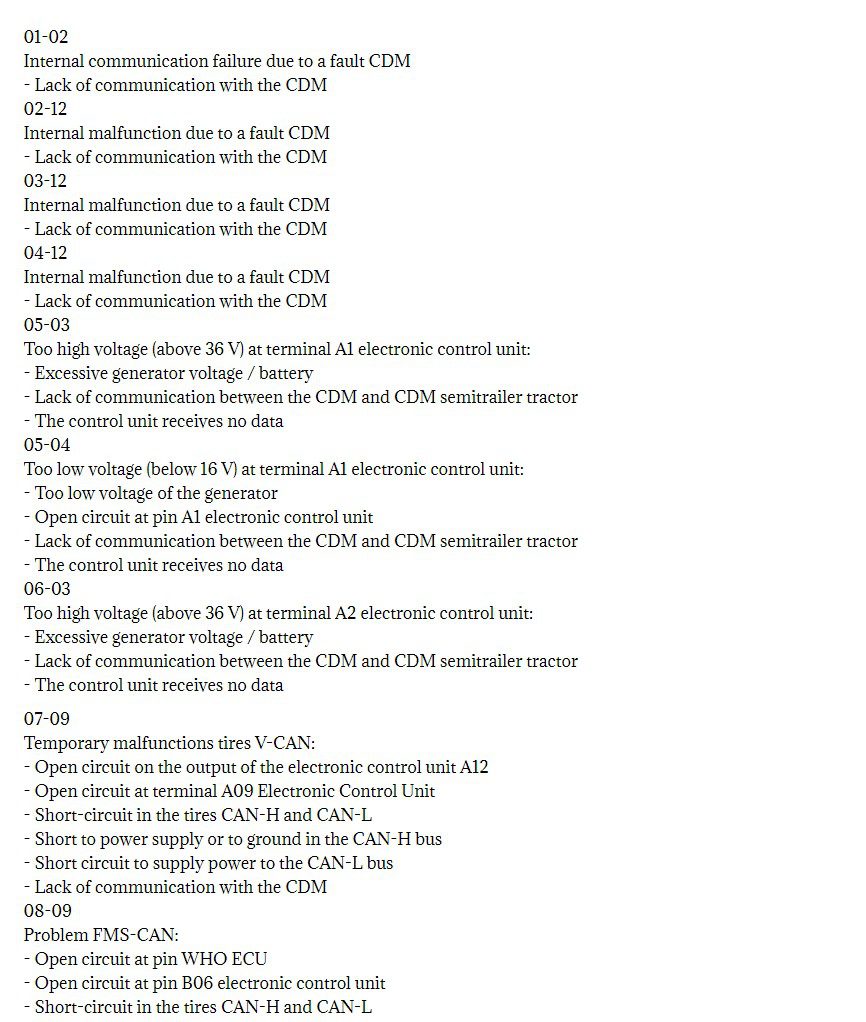

01-02

Internal communication failure due to a fault CDM

– Lack of communication with the CDM

02-12

Internal malfunction due to a fault CDM

– Lack of communication with the CDM

03-12

Internal malfunction due to a fault CDM

– Lack of communication with the CDM

04-12

Internal malfunction due to a fault CDM

– Lack of communication with the CDM

05-03

Too high voltage (above 36 V) at terminal A1 electronic control unit:

– Excessive generator voltage / battery

– Lack of communication between the CDM and CDM semitrailer tractor

– The control unit receives no data

05-04

Too low voltage (below 16 V) at terminal A1 electronic control unit:

– Too low voltage of the generator

– Open circuit at pin A1 electronic control unit

– Lack of communication between the CDM and CDM semitrailer tractor

– The control unit receives no data

06-03

Too high voltage (above 36 V) at terminal A2 electronic control unit:

– Excessive generator voltage / battery

– Lack of communication between the CDM and CDM semitrailer tractor

– The control unit receives no data

07-09

Temporary malfunctions tires V-CAN:

– Open circuit on the output of the electronic control unit A12

– Open circuit at terminal A09 Electronic Control Unit

– Short-circuit in the tires CAN-H and CAN-L

– Short to power supply or to ground in the CAN-H bus

– Short circuit to supply power to the CAN-L bus

– Lack of communication with the CDM

08-09

Problem FMS-CAN:

– Open circuit at pin WHO ECU

– Open circuit at pin B06 electronic control unit

– Short-circuit in the tires CAN-H and CAN-L

– Short to ground in the CAN-H bus

– Short to ground in the CAN-L bus

– The control unit receives no data

09-09

Faulty tires V-CAN CAN-L as a result of a short circuit to ground in the CAN-L

– No significant system constraints

10-09

Crashes Trailer CAN bus due to short circuit CAN-H and CAN-L

– Lack of communication with the CDM

32-09

Failures CAN-L bus:

– Open circuit at pin C02 ECU

– Short to power supply in the CAN-L

– Lack of communication with the CDM

33-09

Failures CAN-H bus:

– Open circuit at pin C03 ECU

– Lack of communication with the CDM

DAF LF, CF, XF Fault Codes VIC DTC

12401-3

Short to power supply in the output B21 of the electronic

the control unit

– Protecting scenes transmission is active at low speeds; 1-2 can be switched wings at low speeds

12401-20

Open or short to ground in the electronic withdrawal of B21

the control unit

– Protecting scenes transmission does not work, you can switch scenes 1-2 at high speeds

12501-3

Short to power supply in the output B19 of the electronic

the control unit

– Per inclusion in the lower range is still possible, even at high speeds

12501-20

Open or short to ground in the electronic withdrawal of B19

the control unit

– It is not possible to switch to a reduced range, even at low speeds

12701-21

Open on pin C05 ECU

– Do not operate the rear fog lights

– Do not operate light washers

12702-3

Short circuit to supply power to the electronic output C50

the control unit

– Relay G237 is no longer powered, windshield wipers do not work

12702-20

Open or short to ground in the electronic output C50

the control unit

– Do not operate the windscreen wipers

12702-20

A short to ground in the output of the electronic unit C50

management

– Motor drive windshield wiper operates at low speed when set to “0” a steering column switch

12703-22

Open at terminal A01 of the electronic control unit

– Do not operate the windscreen wipers

12703-22

Short circuit to supply power to the electronic output A01

the control unit

– Motor drive windshield wiper operates at low speed when set to “0” a steering column switch

12703-4

A short to ground in the output A01 of the electronic unit

management

– Do not operate the windscreen wipers

12704-22

Short circuit to supply power to the electronic output C48

the control unit

– Wiper Motor Forward Lighting headlamp runs continuously

12704-22

Open on pin C48 ECU

– Wiper Motor Forward Lighting headlamp is not working when the switch

12704-4

A short to ground in the output of the electronic unit C48

management

– Wiper Motor Forward Lighting headlamp is not working when the switch

13401-24

A short to ground or excessive load on the output E09

ECU

– Left pointers tractor turns: do not blink in front, blink rate is too high back

13401-5

Open or inappropriate burden on the withdrawal of electronic E09

the control unit

– Left pointers tractor turns do not work

13402-24

A short to ground or excessive load on the output

E08 ECU

– Right pointers tractor turns: do not blink in front, blink rate is too high back

13402-5

Open or inappropriate burden on the withdrawal of electronic E08

the control unit

– The right index of turns of the tractor does not work

13403-24

A short to ground or excessive load on the output E07

ECU

– Left pointers tractor turns: do not flash back, flash with too high frequency front

13403-5

Open or inappropriate burden on the withdrawal of electronic E07

the control unit

– Left pointers tractor turns do not work

13404-24

A short to ground or excessive load on the output E04

ECU

– Right pointers tractor turns: do not flash back, flash with too high frequency front

13404-5

Open or inappropriate burden on the withdrawal of electronic E04

the control unit

– The right index of turns of the tractor does not work

13405-24

A short to ground or excessive load on the output

A07 Electronic Control Unit

– Left pointers transport trailer turns do not work

13406-24

A short to ground or excessive load on the output

A08 Electronic Control Unit

– Left pointers transport trailer turns do not work

21301-3

Short circuit to supply power to the electronic withdrawal of D16

the control unit

– There are no indications of air pressure indicator, circuit 1

21301-20

Open or short to ground in the electronic withdrawal of D16

the control unit

– There are no indications of air pressure indicator, circuit 1

21301-23

Voltage out of range; voltage between 0 and 1

The output D16 to the electronic control unit

– There are no indications of air pressure indicator, circuit 1

21301-25

Voltage out of range; voltage between 4 and 5

The output D16 to the electronic control unit

– There are no indications of air pressure indicator, circuit 1

21302-3

Short to power supply in the output D11 of the electronic

the control unit

– There are no indications of air pressure indicator, circuit 1

21302-20

Open or short to ground in the electronic withdrawal of D11

the control unit

– There are no indications of air pressure indicator, circuit 2

21302-23

Voltage out of range; voltage between 0 and 1B at pin D11 ECU

– There are no indications of air pressure indicator, circuit 2

21302-25

Voltage out of range; voltage between 4 and 5

The output D11 to the electronic control unit

– There are no indications of air pressure indicator, circuit 2

21303-3

Short to power supply in the output D31 of the electronic

the control unit

– No evidence of air pressure indicator, chains 1 and 2

21303-4

A short to ground in the output D31 of the electronic unit

management

– Flashing lights DIP-4 devices, there is no opportunity to consider the DTCs

21901-3

Short circuit on the power supply at terminal B24 of the electronic

the control unit

– Traction control can be activated independently of the speed

22001-21

ECU Open on pin C05 or open

supply voltage

– Switch the rear fog lamp is no longer switched off automatically after turning off the lights

22002-3

Short to power supply in the output of the C40 electronic

the control unit

– Rear fog lights remain on regardless of the position of the switch

22002-20

Open or short to ground in the electronic output C40

the control unit

– Rear fog lights do not work

22601-21

Open on pin C08 ECU

– LED is off DIP-4

22901-22

Open or short circuit in the power supply to the output D15

ECU

– Activated the yellow warning signal “Low coolant level”

22901-23

The voltage signal is beyond the tolerance

– Information on the main display does not correspond to the actual level of coolant; It can display a warning

23801-4

A short to ground on the output D04 of the electronic unit

management

– The brightness of the backlight of the dashboard is no longer regulated

23801-5

Open or insufficient load on the output of e-D04

the control unit

– The brightness of the backlight of the dashboard is no longer regulated

23802-21

Open on pin C07 ECU

– The brightness of the backlight of the dashboard is no longer regulated

24202-19

Do not enter the CAN message from the electronic control unit

transmission due to communication problems

– No noticeable restrictions VIC system

24204-19

Do not enter the CAN message from the electronic control unit

Intarder due to communication problems

– No noticeable restrictions VIC system

24401-2

Failed to read the chassis number

– Red warning «VIC configuration fail It» ( «configuration failed VIC»)

25601-16

Too high speed of the engine crankshaft

– Actively yellow warning «engine speed too high» ( «too high engine speed”);

engine speed exceeds 2450 r / min for more than one second

26001-3

Short circuit on the power supply at terminal B23 of the electronic

control unit (transmission with manual control)

– Permanently activated power take-off 1

26001-20

Open or short circuit to ground at terminal B23 of the electronic

control unit (transmission with manual control)

– Power take-off 1 is not activated after the manipulation of the switch; also activated yellow warning PTO 1

26002-3

Short circuit to supply power to the electronic output C46

control unit (transmission with manual control)

– Permanently activated power take-off 2

26002-20

Open or short circuit to ground at pin C46 electronic

control unit (transmission with manual control)

– Power take-off 2 is not activated after the manipulation of the switch; and yellow warning is activated

power take-off 2

26101-11

No signal on pin B01 / B07 electronic control unit

oil level sensor in the engine (F673)

– Activates red warning «engine oil level too low» ( «too low engine oil level”)

26201-3

Short to power supply in the output B23 of the electronic

control unit (AS Tronic)

– Power take-off 1 is activated permanently

26201-20

Open or short circuit to ground at terminal B23 of the electronic

control unit (AS Tronic)

– Power take-off 1 is not activated after the manipulation of the switch; and yellow warning is activated

power take-off 1

26202-3

Short circuit to supply power to the electronic output C46

control unit (AS Tronic)

– Power take-off 2 is activated permanently

26202-20

Open or short circuit to ground at pin C46 electronic

control unit (AS Tronic)

– Power take-off 2 is not activated after the manipulation of the switch; and yellow warning is activated

power take-off 2

27201-3

Short circuit to supply power to the electronic output C42

the control unit

– The engine can not be started; Relay G372 / G303 is switched on (depending on the date of manufacture, it

the connection is on pin electronic control unit C44

on cars after 2004-25)

– Lighting stays on, the relay G301 remains on

– Cabin heater can not be switched on, the relay D871 / D901 remains on

27201-19

Do not enter the CAN message “engine speed”

Power does not come to a conclusion C42, therefore:

– No start-up protection when the engine is running; Relay G303 / G372 can be powered

– Lighting does not work for Sweden; G301 relay can not supply power

– Cabin heater does not turn off; Relay D871 / D901 does not power

27201-20

Open or short circuit to ground at pin C42 electronic

the control unit

– No start-up protection when the engine is running; Relay G303 / G372 can be powered

– Lighting does not work for Sweden; G301 relay can not supply power

– Cabin heater does not turn off; Relay D871 / D901 does not power

30801-2

Open the power supply at terminal A02 Electronic Control Unit

– Light alarm function does not work

30802-2

Open the power supply at terminal A09 Electronic Control Unit

– Light alarm function does not work

30803-2

Open the power supply at terminal E03 ECU

– The function of the direction indicators does not work

33301-19

Not supplied CAN messages from the transition unit due to CAN

communication problems

– No noticeable restrictions VIC system
