Custom Wheel Installation: Offset and Sizing Explained 🚗🔧

Table of Contents

Unlock the Perfect Fit and Style—A Beginner’s Guide to Wheel Offset, Sizing, and Safe Installation!

1. Why Wheel Offset and Size Matter ⚠️

Custom wheels transform your car’s look and performance, but the wrong specs can lead to rubbing, handling issues, or even suspension damage. Understanding offset and sizing ensures a safe, legal, and head-turning upgrade.

Key Stat: 30% of wheel-related warranty claims stem from incorrect sizing or offset (NHTSA).

2. Understanding Wheel Offset 📏

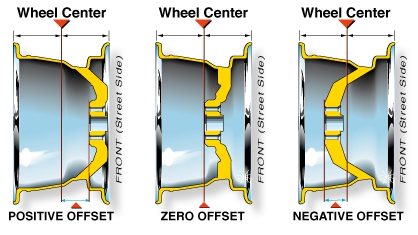

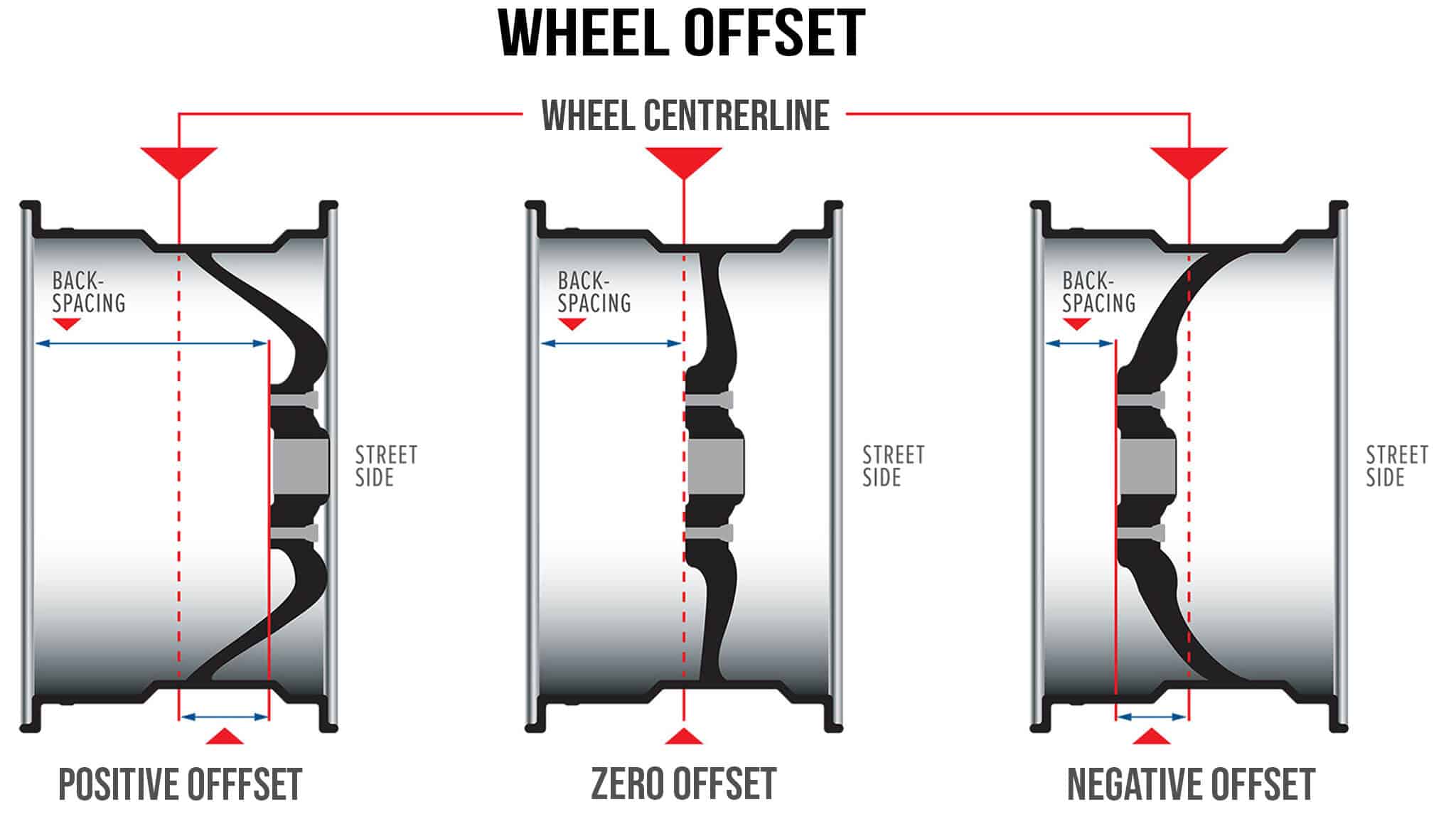

What Is Offset?

Offset is the distance (in millimeters) from the wheel’s mounting surface to its centerline. It determines how far the wheel sits inward or outward from the hub.

Offset Type	Description	Visual Effect
Positive	Mounting surface toward the outer edge	Wheel tucks inside the fender
Negative	Mounting surface toward the inner edge	Wheel protrudes past the fender
Zero	Mounting surface at the centerline	Neutral stance

How Offset Affects Your Car

Too positive: Wheel rubs suspension components.
Too negative: Wheel sticks out, stressing bearings and risking legal issues.
Ideal range: Check your vehicle’s manual or use an offset calculator.

Offset Calculator

Enter offset value (mm):

3. Wheel Sizing Basics 🛞

Key Dimensions

Diameter: Affects tire profile and clearance (e.g., 18" vs. 20").
Width: Determines tire spread (measured in inches, e.g., 8.5").
Bolt Pattern: Must match your hub (e.g., 5x114.3 for Hondas).

Common Bolt Patterns

Vehicle Type	Example Bolt Pattern
Honda Civic	5x114.3
Ford F-150	6x135
BMW 3 Series	5x120

Pro Tip: Use a bolt pattern gauge or measure manually (distance between lug centers).

Plus-Sizing Explained

Upgrading wheel diameter while reducing tire sidewall height to maintain overall tire diameter.

Example: 17" → 19" wheels with lower-profile tires.
Impact: Sharper handling but stiffer ride.

4. How to Choose the Right Offset & Size 🧩

Check OEM specs: Find your car’s stock offset and bolt pattern.
Define goals:
- Aggressive stance: Slightly negative offset.
- OEM+ look: Stay within ±5mm of stock.
Test fit: Use a local shop’s test wheels or a wheel fitment calculator (e.g., WillTheyFit.com).
Consider tires: Wider wheels need wider tires (avoid stretching or bulging).

5. Step-by-Step Installation Guide 🔧

Tools Needed

Torque wrench (50–150)
Jack and jack stands
Lug nut socket
Hub-centric rings (if needed)

Steps

Loosen lug nuts on the ground.
Lift the car and secure with jack stands.
Remove old wheels and clean the hub surface.
Install hub-centric rings (if aftermarket wheels have a larger center bore).
Mount new wheels and hand-tighten lug nuts in a star pattern.
Torque lug nuts to spec (70–100 ft-lbs for most cars).
Lower the car and re-torque after 50 miles.

HOW TO PROPERLY TORQUE WHEEL LUG NUTS EASY!

6. Common Mistakes to Avoid 🚫

Ignoring hub-centricity: Use rings to prevent vibrations.
Over-tightening: Strips lug threads or warps rotors.
Skipping alignment: Adjust camber/toe after significant offset changes.
Wrong load rating: Heavy trucks need higher-rated wheels.

7. Legal & Safety Considerations ⚖️

Tire protrusion laws: Wheels can’t extend past fenders without flares (varies by state).
DOT compliance: Ensure aftermarket wheels meet safety standards.
Insurance: Report modifications to avoid claim denials.

8. FAQs ❓

Q1: Can I use spacers to adjust offset?

A: Yes, but they add stress on hubs—use hub-centric spacers ≤1”.

Q2: Will negative offset affect handling?

A: Yes—wider track improves stability but may reduce steering response.

Q3: How do I measure offset at home?

A: Flip the wheel face down, lay a straightedge across the rim, and measure to the mounting surface.

Q4: Do I need new lug nuts?

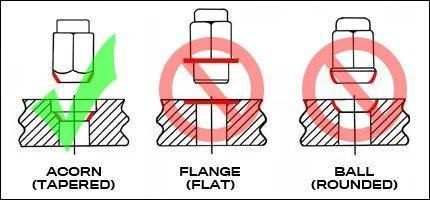

A: Yes—aftermarket wheels often require tuner-style or conical lugs.

Q5: Can I mix wheel sizes?

A: Only if your car supports staggered setups (e.g., rear wider than front).

9. Top Wheel Brands 🏆

Brand	Best For	Price Range
Enkei	Lightweight performance	150–150–400/wheel
Rotiform	Custom designs	300–300–600/wheel
Method Race	Off-road durability	200–200–500/wheel

10. Free Wheel Fitment Checklist 📝

[🔗 Download Your Free Guide Here]
Includes:

Offset/size calculators.
Torque specs by vehicle.
Legal guidelines by state.
