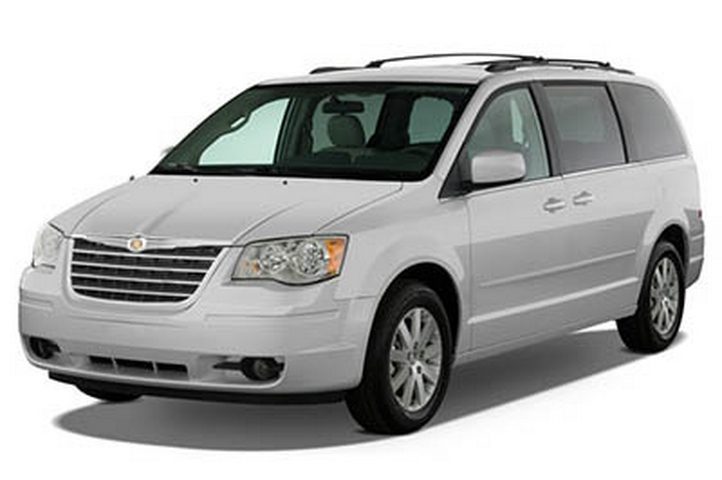

This article is about the fifth generation Chrysler Town & Country (Voyager), produced from 2008 to 2016. Here you will find the Chrysler Town & Country 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 and 2016 fuse box outline to help you locate the fuse boxes inside the car and learn about the allocation of each fuse (fuse layout) and relay.
The fuses for the cigar lighter socket in the Chrysler Town & Country are fuses M6, M7 and M36 in the engine compartment fuse box.

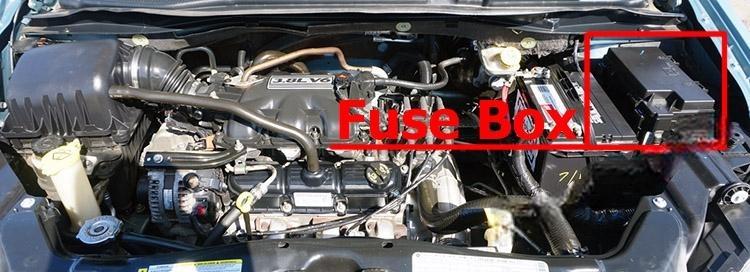

Fuse box location
The Totally Integrated Power Module (TIPM) is located in the engine compartment near the battery.
This center contains cartridge fuses and mini-fuses. A label that identifies each component may be printed or embossed on the inside of the cover. The numbers inside the TIPM cover correspond to the following table.
Fuse box diagrams
2008

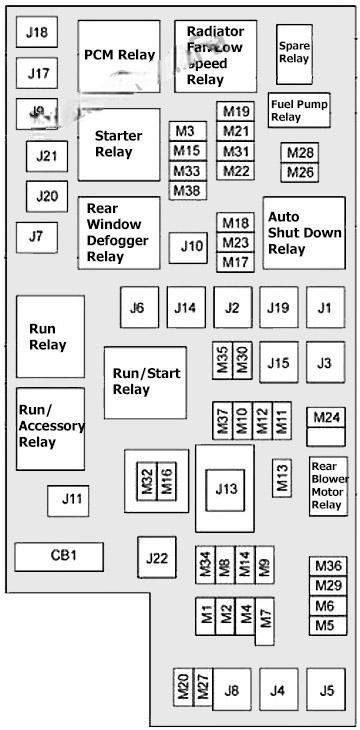

Assignment of fuses in the TIPM (2008)
| Cavity | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | — | Power Folding Seat |
| J2 | 30 Amp Pink | — | Power Liftgate Module |
| J3 | 40 Amp Green | — | Rear Door Module (RR Door Node) |
| J4 | 25 Amp Natural | — | Driver Door Node |
| J5 | 25 Amp Natural | — | Passenger Door Node |
| J6 | 40 Amp Green | — | Anti-Lock Brake System (ABS) Pump/ESP |
| J7 | 30 Amp Pink | — | Anti-Lock Brake System (ABS) Valve |
| J8 | 40 Amp Green | — | Power Memory Seat (If Equipped) |
| J9 | 40 Amp Green | — | PZEV Motor/Flex Fuel |
| J10 | 30 Amp Pink | — | Headlamp Wash Relay/ Manual Tuning Valve |
| J11 | 30 Amp Pink | — | Power Sliding Door Module |
| J13 | 60 Amp Yellow | — | Ignition Off Draw (IOD) — Main |
| J14 | 40 Amp Green | — | Rear Window Defogger |
| J15 | 30 Amp Pink | — | Rear Blower |
| J17 | 40 Amp Green | — | Starter Solenoid |
| J18 | 20 Amp Yellow | — | Powertrain Control Module (PCM) Trans Range |
| J19 | 60 Amp Yellow | — | Radiator Fan |
| J20 | 30 Amp Pink | — | Front Wiper LO/HI |
| J21 | 20 Amp Yellow | — | Front/Rear Washer |
| J22 | 25 Amp Natural | — | Sunroof Module |
| M1 | 15 Amp Blue | Center High Mounted Stop Light (CHMSL)/ Brake Switch | |
| M2 | — | 20 Amp Yellow | Trailer Lighting |
| M3 | — | 20 Amp Yellow | — |
| M4 | — | 10 Amp Red | Trailer Tow |
| M5 | — | 25 Amp Natural | Inverter |
| M6 | — | 20 Amp Yellow | — |
| M7 | — | 20 Amp Yellow | Power Outlet #2 (BATT/ ACC SELECT) |
| M8 | — | 20 Amp Yellow | Front Heated Seat (If Equipped) |
| M9 | — | 20 Amp Yellow | Rear Heated Seat (If Equipped) |
| M10 | 20 Amp Yellow | Ignition Off Draw — Vehicle Entertainment System (IOD-VES), Satellite Digital Audio Receiver (SDARS), DVD, Hands-Free Module (HFM), Universal Garage Door Opener (UGDO), Vanity Lamp (VANITY LP) | |
| M11 | 10 Amp Red | (Ignition Off Draw) IOD-HVAC/ATC, MW SENSR, Underhood Lamp (UH LMP) | |
| M12 | — | 30 Amp Green | Amplifier (AMP) |
| M13 | 20 Amp Yellow | Ignition Off Draw-Cabin Compartment Node (IOD-CCN). Wireless Control Module (WCM), SIREN, Clock Module (CLK MOD), Multi-Function Control Switch (MULTI-FCTN SW) | |
| M14 | — | 20 Amp Yellow | Trailer Tow (Export Only) |
| M15 | — | 20 Amp Yellow | COL MOD, IR SNS, Heater Ventilation, Air Conditioning/Automatic Temperature Control (HVAC/ATC), Rear View Mirror (RR VW MIR), Cabin Compartment Node (CCN), Transfer Case Switch (T-CASE SW), RUN/ST, Multi-Function Control Switch (MULTIFTCN SW), Tire Pressure Monitor (TPM), Glow Plug Module (GLW PLG MOD) — Export Diesel Only |
| M16 | 10 Amp Red | Occupant Restraint Controller/Occupant Classification Module (ORC/OCM) | |
| M17 | — | 15 Amp Blue | Left Tail/License/Park Lamp (LT-TAIL/LIC/PRK LMP) |
| M18 | 15 Amp Blue | Right Tail/Park/Run Lamp (RT-TAIL/PRK/ RUN LMP) | |
| M19 | — | 25 Amp Natural | Auto Shut Down (ASD #1 and #2) |
| M20 | 15 Amp Blue | Cabin Compartment Node Interior Light (CCN INT LIGHT), Switch Bank (SW BANK), Steering Control Module (SCM) | |
| M21 | — | 20 Amp Yellow | Auto Shut Down (ASD #3) |
| M22 | — | 10 Amp Red | Right Horn (RT HORN (HI/LOW) |
| M23 | — | 10 Amp Red | Left Horn (LT HORN (HI/LOW) |
| M24 | — | 25 Amp Natural | Rear Wiper (REAR WIPER) |
| M25 | 20 Amp Yellow | Fuel Pump (FUEL PUMP), Diesel Lift Pump (DSL LIFT PUMP) – Export Only | |
| M26 | 10 Amp Red | Power Mirror Switch (PWR MIRR SW), Driver Window Switch (DRVR WIND SW) | |
| M27 | 10 Amp Red | Ignition Switch (IGN SW), Window Module (WIN MOD) | |
| M28 | 10 Amp Red | Next Generation Controller (NGC), Transmission Feed (TRANS FEED), J1962 | |
| M29 | — | 10 Amp Red | Occupant Classification Module (OCM) |
| M30 | 15 Amp Blue | Rear Wiper Module (RR WIPER MOD), Power Folding Mirror (PWR FOLD MIR) | |
| M31 | — | 20 Amp Yellow | Back-Up Lamps (B/U LAMPS) |
| M32 | 10 Amp Red | Occupant Restraint Controller (ORC), TT EUROPE | |
| M33 | 10 Amp Red | Next Generation Controller (NGC), Global Power-train Engine Controller (GPEC) | |
| M34 | 10 Amp Red | Park Assist (PRK ASST). Heater Ventilation, Air Conditioning Module (HVAC MOD), Headlamp Wash (HDLP WASH), Compass (COMPAS) | |
| M35 | — | 10 Amp Red | Heated Mirrors |
| M36 | — | 20 Amp Yellow | Power Outlet #3 (BATT) |
| M37 | 10 Amp Red | Anti-Lock Brake System (ABS), Electronic Stability Program (ESP), Stop Lamp Switch (STP LP SW), Fuel Pump Rly Hi Control | |
| M38 | — | 25 Amp Natural | Lock/Unlock Motors (LOCK/UNLOCK MTRS) |
The Heated Mirrors, Lower Instrument Panel Power Outlet and Removable Floor Console, when in the front position are fused with self-resetting fuses that are only serviceable by an authorized dealer. The power seats are fused by a 30 Amp circuit breaker located under the driver’s seat. The Power Windows are fused by a 25 Amp circuit breaker located under the instrument panel near the steering column. If you experience temporary or permanent loss of these systems, see your authorized dealer for service.
2009

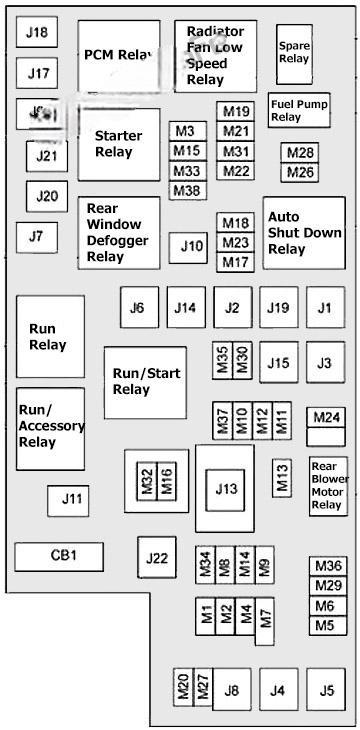

Assignment of fuses in the TIPM (2009)
| Cavity | Cartridge Fuse | Mini- Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | — | Power Folding Seat |
| J2 | 30 Amp Pink | — | Power Liftgate Module |
| J3 | 30 Amp Pink | — | Rear Door Module (RR Door Node) |
| J4 | 25 Amp Natural | — | Driver Door Node |
| J5 | 25 Amp Natural | — | Passenger Door Node |
| J6 | 40 Amp Green | Anti-Lock Brake System (ABS) Pump/ESP | |
| J7 | 30 Amp Pink | Anti-Lock Brake System (ABS) Valve/ESP | |
| J8 | 40 Amp Green | — | Power Memory Seat (If Equipped) |
| J9 | 40 Amp Green | — | PZEV Motor/Flex Fuel |
| J10 | 30 Amp Pink | — | Headlamp Wash Relay/Manifold Tuning Valve |
| J11 | 30 Amp Pink | — | Power Sliding Door Module/Thatchum Relay Lock Feed |
| J13 | 60 Amp Yellow | — | Ignition Off Draw (IOD) – Main |
| J14 | 40 Amp Green | — | Rear Window De-fogger |
| J15 | 30 Amp Pink | — | Rear Blower |
| J17 | 40 Amp Green | — | Starter Solenoid |
| J18 | 20 Amp Blue | Powertrain Control Module (PCM) Trans Range | |
| J19 | 60 Amp Yellow | — | Radiator Fan |
| J20 | 30 Amp Pink | — | Front Wiper LO/HI |
| J21 | 20 Amp Blue | — | Front/Rear Washer |
| J22 | 25 Amp Natural | — | Sunroof Module |
| M1 | 15 Amp Blue | Center High Mounted Stop Light (CHMSL)/ Brake Switch | |
| M2 | — | — | — |
| M3 | — | 20 Amp Yellow | Spare Fuse |
| M4 | — | 10 Amp Red | Trailer Tow |
| M5 | — | 25 Amp Natural | Inverter |
| M6 | — | 20 Amp Yellow | Power Outlet #1 (ACC), Rain Sensor |
| M7 | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) | |
| M8 | — | 20 Amp Yellow | Front Heated Seat (If Equipped) |
| M9 | — | 20 Amp Yellow | Rear Heated Seat (If Equipped) |
| M10 | 15 Amp Blue | Ignition Off Draw — Vehicle Entertainment System (IOD-VES), Satellite Digital Audio Receiver (SDARS), DVD, Hands-Free Module (HFM), Universal Garage Door Opener (UGDO), Vanity Lamp (VANITY LP), Streaming Video Module | |
| M11 | — | 10 Amp Red | (Ignition Off Draw) IOD-HVAC/ATC |
| M12 | — | 30 Amp Green | Amplifier (AMP)/ Radio |
| M13 | 20 Amp Yellow | Ignition Off Draw— Cabin Compartment Node (IOD-CCN), SIREN, Clock Module (CLK MOD), Multi-Function Control Switch (MULTI-FCTN SW)/ITM | |
| M14 | — | 20 Amp Yellow | Spare Fuse |
| M15 | — | 20 Amp Yellow | Rear View Mirror (RR VW MIR), Cabin Compartment Node (CCN), Multi-Function Control Switch (MULTIFTCN SW), Tire Pressure Monitor (TPM), Glow Plug Module (GLW PLG MOD) — Export Diesel Only, Assy-Shifter (Hall Effect), Acoustic Noise Cancellation (ANC) |
| M16 | 10 Amp Red | Occupant Restraint Controller/ Occupant Classification Module (ORC/OCM) | |
| M17 | 15 Amp Blue | Left Tail/License/ Park Lamp (LT-TAIL/LIC/PRK LMP), Running Lamps | |
| M18 | 15 Amp Blue | Right Tail/Park/ Run Lamp (RT-TAIL/PRK/RUN LMP) | |
| M19 | — | 25 Amp Natural | Auto Shut Down (ASD #1 and #2) |
| M20 | — | 15 Amp Blue | Cabin Compartment Node Interior Light (CCN INT LIGHT), Switch Bank (SW BANK), Steering Control Module (SCM), Switch Steering Wheel |
| M21 | — | 20 Amp Yellow | Auto Shut Down (ASD #3) |
| M22 | — | 10 Amp Red | Right Horn (RT HORN (HI/LOW) |
| M23 | — | 10 Amp Red | Left Horn (LT HORN (HI/LOW) |
| M24 | — | 25 Amp Natural | Rear Wiper (REAR WIPER) |
| M25 | 20 Amp Yellow | Fuel Pump (FUEL PUMP), Diesel Lift Pump (DSL LIFT PUMP) — Export Only | |
| M26 | 10 Amp Red | Power Mirror Switch (PWR MIRR SW), Driver Window Switch (DRVR WIND SW) | |
| M27 | 10 Amp Red | Ignition Switch (IGN SW), Window Module (WIN MOD), PEM. Steering Column Lock | |
| M28 | 10 Amp Red | Next Generation Controller (NGC), PCM, Transmission Feed (TRANS FEED), TCM | |
| M29 | 10 Amp Red | Occupant Classification Module (OCM) | |
| M30 | 15 Amp Blue | Rear Wiper Module (RR WIPER MOD), Power Folding Mirror (PWR FOLD MIR), J1962 Diagnostic Feed | |
| M31 | — | 20 Amp Yellow | Back-Up Lamps (B/U LAMPS) |
| M32 | 10 Amp Red | Occupant Restraint Controller (ORC), TT EUROPE | |
| M33 | 10 Amp Red | Next Generation Controller (NGC), Global Powertrain Engine Controller (GPEC), TCM | |
| M34 | 10 Amp Red | Park Assist (PRK ASST), Heater Ventilation, Air Conditioning Module (HVAC MOD), Headlamp Wash (HDLP WASH), Compass (COMPAS), IR Sensor, Rear Camera, Lamp Door FT Drv/Pass, Lamp Flashlight, AHLM, Relay Diesel Cabin Heater, Rad Fan Diesel | |
| M35 | — | 10 Amp Red | Heated Mirrors |
| M36 | — | 20 Amp Yellow | Power Outlet #3 (BATT) |
| M37 | 10 Amp Red | Anti-Lock Brake System (ABS), Electronic Stability Program (ESP), Stop Lamp Switch (STP LP SW), Fuel Pump Rly Hi Control | |
| M38 | 25 Amp Natural | Door Lock/Unlock Motors (LOCK/ UNLOCK MTRS), Liftgate Lock/ Unlock Motors |
The heated mirrors, lower instrument panel power outlet and removable floor console, when in the front position are fused with self-resetting fuses that are only serviceable by an authorized dealer. The power seats are fused by a 30 Amp circuit breaker located under the driver’s seat. The power windows are fused by a 25 Amp circuit breaker located under the instrument panel near the steering column. If you experience temporary or permanent loss of these systems, see your authorized dealer for service.
2010

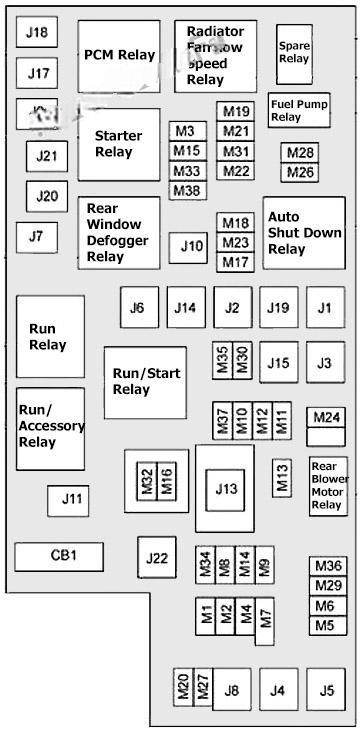

Assignment of fuses in the TIPM (2010)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | — | Power Folding Seat |
| J2 | 30 Amp Pink | — | Power Liftgate Module |
| J3 | 30 Amp Pink | Rear Door Module (RR Door Node) | |
| J4 | 25 Amp Natural | — | Driver Door Node |
| J5 | 25 Amp Natural | — | Passenger Door Node |
| J6 | 40 Amp Green | Antilock Brakes Pump/Stability Control System | |
| J7 | 30 Amp Pink | — | Antilock Brakes Valve/Stability Control System |
| J8 | 40 Amp Green | — | Power Memory Seat – If Equipped |
| J9 | 40 Amp Green | Partial Zero Emissions Vehicle Motor/ Flex Fuel | |
| J10 | 30 Amp Pink | Headlamp Wash Relay/ Manifold tuning Valve | |
| J11 | 30 Amp Pink | Power Sliding Door Module/ Anti-Theft Module Relay Lock Feed | |
| J13 | 60 Amp Yellow | Ignition Off Draw (IOD) -Main | |
| J14 | 40 Amp Green | — | Rear Window Defogger |
| J15 | 30 Amp Pink | — | Rear Blower |
| J17 | 40 Amp Green | — | Starter Solenoid |
| J18 | 20 Amp Blue | Powertrain Control Module Trans Range | |
| J19 | 60 Amp Yellow | — | Radiator Fan |
| J20 | 30 Amp Pink | — | Front Wiper LO/HI |
| J21 | 20 Amp Blue | — | Front/Rear Washer |
| J22 | 25 Amp Natural | — | Sunroof Module |
| M1 | — | 15 Amp Blue | Rear Center Brake Lamp/ Brake Switch |
| M2 | — | — | — |
| M3 | — | 20 Amp Yellow | Spare Fuse |
| M4 | — | 10 Amp Red | Trailer Tow |
| M5 | — | 25 Amp Natural | Inverter |
| M6 | — | 20 Amp Yellow | Power Outlet #1 (ACC), Rain Sensor |
| M7 | — | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) |
| M8 | — | 20 Amp Yellow | Front Heated Seat – If Equipped |
| M9 | 20 Amp Yellow | Rear Heated Seat – If Equipped | |
| M10 | 15 Amp Blue | Ignition Off Draw — Video System, Satellite Radio, DVD, HandsFree Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module | |
| M11 | — | 10 Amp Red | Ignition Off Draw – Climate Control System |
| M12 | — | 30 Amp Green | Amplifier (AMP)/Radio |
| M13 | 20 Amp Yellow | Ignition Off Draw— Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch/ ITM | |
| M14 | — | 20 Amp Yellow | Spare Fuse |
| M15 | 20 Amp Yellow | Rear View Mirror, Instrument Cluster, MultiFunction Control Switch, Tire Pressure Monitor, Glow Plug Module – Export Diesel Only, AssyShifter (Hall Effect), Acoustic Noise Cancellation | |
| M16 | 10 Amp Red | Airbag Module/ Occupant Classification Module | |
| M17 | 15 Amp Blue | Left Tail/ License/Park Lamp, Running Lamps | |
| M18 | 15 Amp Blue | Right Tail/ Park/Run Lamp | |
| M19 | 25 Amp Natural | Automatic Shutdown #1 and #2 | |
| M20 | 15 Amp Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel | |
| M21 | — | 20 Amp Yellow | Automatic Shutdown #3 |
| M22 | — | 10 Amp Red | Right Horn (HI/LOW) |
| M23 | — | 10 Amp Red | Left Horn (HI/ LOW) |
| M24 | — | 25 Amp Natural | Rear Wiper |
| M25 | 20 Amp Yellow | Fuel Pump, Diesel Lift Pump – Export Only | |
| M26 | — | 10 Amp Red | Power Mirror Switch, Driver Window Switch |
| M27 | 10 Amp Red | Ignition Switch, Wireless Control Module, Keyless Entry Module, Steering Column Lock | |
| M28 | 10 Amp Red | Powertrain Control Module, Transmission Feed, Transmission Control Module | |
| M29 | — | 10 Amp Red | Occupant Classification Module |
| M30 | 15 Amp Blue | Rear Wiper Module, Power Folding Mirror, J1962 Diagnostic Feed | |
| M31 | — | 20 Amp Yellow | Back-Up Lamps |
| M32 | — | 10 Amp Red | Airbag Module, TT EUROPE |
| M33 | 10 Amp Red | Powertrain Control Module, Transmission Control Module | |
| M34 | 10 Amp Red | Park Assist, Heater Climate Control System Module, Headlamp Wash, Compass, IR Sensor, Rear Camera, Lamp Door FT Drv/ Pass, Lamp Flashlight, AHLM, Relay Diesel Cabin Heater, Rad Fan Diesel | |
| M35 | — | 10 Amp Red | Heated Mirrors |
| M36 | — | 20 Amp Yellow | Power Outlet #3 |
| M37 | 10 Amp Red | Antilock Brakes, Stability Control System, Stop Lamp Switch, Fuel Pump Rly Hi Control | |
| M38 | 25 Amp Natural | Door Lock/ Unlock Motors, Liftgate Lock/ Unlock Motors |
The heated mirrors, lower instrument panel power outlet and removable floor console, when in the front position are fused with self-resetting fuses that are only serviceable by an authorized dealer. The power seats are fused by a 30 Amp circuit breaker located under the driver’s seat. The power windows are fused by a 25 Amp circuit breaker located under the instrument panel near the steering column. If you experience temporary or permanent loss of these systems, see your authorized dealer for service.
2011

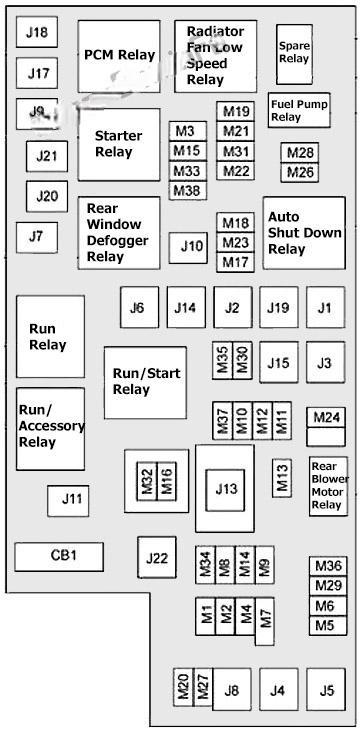

Assignment of fuses in the TIPM (2011)
| Cavity | Cartridge Fuse | Mini- Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | — | Power Folding Seat |
| J2 | 30 Amp Pink | — | Power Liftgate Module |
| J3 | 30 Amp Pink | — | Rear Door Module (RR Door Node) |
| J4 | 25 Amp Natural | — | Driver Door Node |
| J5 | 25 Amp Natural | — | Passenger Door Node |
| J6 | 40 Amp Green | Antilock Brakes Pump/Stability Control System | |
| J7 | 30 Amp Pink | – | Antilock Brakes Valve/Stability Control System |
| J8 | 40 Amp Green | — | Power Memory Seat -If Equipped |
| J9 | 40 Amp Green | Partial Zero Emissions Vehicle Motor/ Flex Fuel | |
| J10 | 30 Amp Pink | Headlamp Wash Relay/Manifold Tuning Valve | |
| J11 | 30 Amp Pink | Power Sliding Door Module/Anti-Theft Module Relay Lock Feed | |
| J13 | 60 Amp Yellow | — | Ignition Off Draw (IOD) – Main |
| J14 | 40 Amp Green | — | Rear Window Defogger |
| J15 | 30 Amp Pink | — | Front Blower |
| J17 | 40 Amp Green | — | Starter Solenoid |
| J18 | 20 Amp Blue | — | Powertrain Control Module Trans Range |
| J19 | 60 Amp Yellow | — | Radiator Fan |
| J20 | 30 Amp Pink | — | Front Wiper LO/HI |
| J21 | 20 Amp Blue | — | Front/Rear Washer |
| J22 | 25 Amp Natural | — | Sunroof Module |
| M1 | — | 15 Amp Blue | Rear Center Brake Lamp /Brake Switch |
| M2 | — | — | — |
| M3 | — | 20 Amp Yellow | Spare Fuse |
| M4 | — | 10 Amp Red | Trailer Tow |
| M5 | — | 25 Amp Natural | Inverter |
| M6 | — | 20 Amp Yellow | Power Outlet #1 (ACC), Rain Sensor |
| M7 | — | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) |
| M8 | — | 20 Amp Yellow | Front Heated Seat – If Equipped |
| M9 | — | 20 Amp Yellow | Rear Heated Seat – If Equipped |
| M10 | 15 Amp Blue | Ignition Off Draw — Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module | |
| M11 | 10 Amp Red | Ignition Off Draw -Climate Control System | |
| M12 | — | 30 Amp Green | Amplifier (AMP)/ Radio |
| M13 | 20 Amp Yellow | Ignition Off Draw— Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch/ITM | |
| M14 | — | 20 Amp Yellow | Spare Fuse |
| M15 | 20 Amp Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – Export Diesel Only, Assy-Shifter (Hall Effect), Acoustic Noise Cancellation | |
| M16 | 10 Amp Red | Airbag Module/ Occupant Classification Module | |
| M17 | 15 Amp Blue | Left Tail /License/ Park Lamp, Running Lamps | |
| M18 | — | 15 Amp Blue | Right Tail/Park/Run Lamp |
| M19 | — | 25 Amp Natural | Automatic Shutdown #1 and #2 |
| M20 | 15 Amp Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel | |
| M21 | — | 20 Amp Yellow | Automatic Shutdown #3 |
| M22 | — | 10 Amp Red | Right Horn (HI/ LOW) |
| M23 | — | 10 Amp Red | Left Horn (HI/LOW) |
| M24 | — | 25 Amp Natural | Rear Wiper |
| M25 | 20 Amp Yellow | Fuel Pump, Diesel Lift Pump – Export Only | |
| M26 | — | 10 Amp Red | Power Mirror Switch, Driver Window Switch |
| M27 | 10 Amp Red | Ignition Switch, Wireless Control Module, Keyless Entry Module, Steering Column Lock | |
| M28 | 10 Amp Red | Powertrain Control Module, Transmission Feed, Transmission Control Module | |
| M29 | — | 10 Amp Red | Occupant Classification Module |
| M30 | 15 Amp Blue | Rear Wiper Module, Power Folding Mirror, J1962 Diagnostic Feed | |
| M31 | — | 20 Amp Yellow | Back-Up Lamps |
| M32 | — | 10 Amp Red | Airbag Module, TT EUROPE |
| M33 | 10 Amp Red | Powertrain Control Module, Transmission Control Module | |
| M34 | 10 Amp Red | Park Assist, Heater Climate Control System Module, Headlamp Wash, Compass, IR Sensor, Rear Camera, Lamp Door FT Drv/Pass, Lamp Flashlight, AHLM, Relay Diesel Cabin Heater, Rad Fan Diesel | |
| M35 | — | 10 Amp Red | Heated Mirrors |
| M36 | — | 20 Amp Yellow | Power Outlet #3 |
| M37 | 10 Amp Red | Antilock Brakes, Stability Control System, Stop Lamp Switch, Fuel Pump Rly Hi Control | |
| M38 | 25 Amp Natural | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
The heated mirrors, lower instrument panel power outlet and removable floor console, when in the front position are fused with self-resetting fuses that are only serviceable by an authorized dealer. The power seats are fused by a 30 Amp circuit breaker located under the driver’s seat. The power windows are fused by a 25 Amp circuit breaker located under the instrument panel near the steering column. If you experience temporary or permanent loss of these systems, see your authorized dealer for service.
2012
Assignment of fuses in the TIPM (2012)
| Cavity | Cartridge Fuse | Mini- Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | — | Power Folding Seat |
| J2 | 30 Amp Pink | — | Power Liftgate Module |
| J3 | 30 Amp Pink | — | Rear Door Module |
| J4 | 25 Amp Natural | — | Driver Door Node |
| J5 | 25 Amp Natural | — | Passenger Door Node |
| J6 | 40 Amp Green | Antilock Brakes Pump/Stability Control System | |
| J7 | 30 Amp Pink | Antilock Brakes Valve/Stability Control System | |
| J8 | 40 Amp Green | — | Power Memory Seat – If Equipped |
| J9 | 40 Amp Green | Partial Zero Emissions Vehicle Motor/ Flex Fuel – If Equipped | |
| J10 | 30 Amp Pink | Headlamp Wash/ Manifold Tuning Valve – If Equipped | |
| J11 | 30 Amp Pink | Power Sliding Door Module/Anti-Theft Module – If Equipped | |
| J12 | 30 Amp Pink | HVAC Rear Blower, Radiator Fan Motor | |
| J13 | 60 Amp Yellow | — | Ignition Off Draw (IOD) – Main |
| J14 | 40 Amp Green | — | Rear Window Defogger |
| J15 | 40 Amp Green | — | Front Blower |
| J17 | 40 Amp Green | — | Starter Solenoid |
| J18 | 20 Amp Blue | — | Powertrain Control Module Trans Range |
| J19 | 60 Amp Yellow | — | Radiator Fan |
| J20 | 30 Amp Pink | — | Front Wiper LO/HI |
| J21 | 20 Amp Blue | — | Front/Rear Washer |
| J22 | 25 Amp Natural | — | Sunroof Module |
| M1 | — | 15 Amp Blue | Rear Center Brake Lamp/Brake Switch |
| M2 | 20 Amp Yellow | Trailer Lighting, Front Fog Lamps, Intelligent Battery Sensor (IBS) | |
| M3 | 20 Amp Yellow | Front/Rear Axle Locker, Vacuum Pump Motor | |
| M4 | — | 10 Amp Red | Trailer Tow |
| M5 | — | 25 Amp Natural | Inverter |
| M6 | 20 Amp Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) | |
| M7 | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear | |
| M8 | — | 20 Amp Yellow | Front Heated Seat – If Equipped |
| M9 | — | 20 Amp Yellow | Rear Heated Seat – If Equipped |
| M10 | 15 Amp Blue | Ignition Off Draw — Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped | |
| M11 | — | 10 Amp Red | Climate Control System |
| M12 | — | 30 Amp Green | Amplifier/Radio |
| M13 | 20 Amp Yellow | Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch – If Equipped | |
| M14 | — | 20 Amp Yellow | Trailer Tow – If Equipped |
| M15 | 20 Amp Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped | |
| M16 | 10 Amp Red | Airbag Module/ Occupant Classification Module | |
| M17 | 15 Amp Blue | Left Tail/License/ Park Lamp, Running Lamps | |
| M18 | — | 15 Amp Blue | Right Tail/Park/Run Lamp |
| M19 | — | 25 Amp Natural | Powertrain |
| M20 | 15 Amp Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel | |
| M21 | — | 20 Amp Yellow | Powertrain |
| M22 | — | 10 Amp Red | Horn |
| M23 | — | 10 Amp Red | Horn |
| M24 | — | 25 Amp Natural | Rear Wiper |
| M25 | 20 Amp Yellow | Fuel Pump, Diesel Lift Pump – If Equipped | |
| M26 | 10 Amp Red | Power Mirror Switch, Driver Window Switch | |
| M27 | 10 Amp Red | Wireless Control Module, Keyless Entry Module | |
| M28 | — | 10 Amp Red | Powertrain, Transmission Control Module |
| M29 | — | 10 Amp Red | Occupant Classification Module |
| M30 | — | 15 Amp Blue | Rear Wiper Module, Power Folding Mirror |
| M31 | — | 20 Amp Yellow | Back-Up Lamps |
| M32 | 10 Amp Red | Airbag Module, THATCHUM – If Equipped | |
| M33 | — | 10 Amp Red | Powertrain |
| M34 | 10 Amp Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped | |
| M35 | — | 10 Amp Red | Heated Mirrors |
| M36 | — | 20 Amp Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | 10 Amp Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump | |
| M38 | 25 Amp Natural | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
The heated mirrors, lower instrument panel power outlet and removable floor console, when in the front position are fused with self-resetting fuses that are only serviceable by an authorized dealer. The power seats are fused by a 30 Amp circuit breaker located under the driver’s seat. The power windows are fused by a 25 Amp circuit breaker located under the instrument panel near the steering column. If you experience temporary or permanent loss of these systems, see your authorized dealer for service.
2013, 2014, 2015
Assignment of fuses in the TIPM (2013, 2014, 2015)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | — | Power Folding Seat |
| J2 | 30 Amp Pink | — | Power Liftgate Module |
| J3 | 30 Amp Pink | — | Rear Door Module |
| J4 | 25 Amp Natural | — | Driver Door Node |
| J5 | 25 Amp Natural | — | Passenger Door Node |
| J6 | 40 Amp Green | — | Antilock Brakes Pump/Stability Control System |
| J7 | 30 Amp Pink | — | Antilock Brakes Valve/Stability Control System |
| J8 | 40 Amp Green | — | Power Memory Seat – If Equipped |
| J9 | 40 Amp Green | Partial Zero Emissions Vehicle Motor/Flex Fuel -If Equipped | |
| J10 | 30 Amp Pink | Headlamp Wash/Manifold Tuning Valve – If Equipped | |
| J11 | 30 Amp Pink | Power Sliding Door Module/Anti-Theft Module – If Equipped | |
| J12 | 30 Amp Pink | HVAC Rear Blower, Radiator Fan Motor | |
| J13 | 60 Amp Yellow | — | Ignition Off Draw (IOD) – Main |
| J14 | 40 Amp Green | — | Rear Window Defogger |
| J15 | 40 Amp Green | — | Front Blower |
| J17 | 40 Amp Green | — | Starter Solenoid |
| J18 | 20 Amp Blue | — | Powertrain Control Module Trans Range |
| J19 | 60 Amp Yellow | — | Radiator Fan |
| J20 | 30 Amp Pink | — | Front Wiper LO/HI |
| J21 | 20 Amp Blue | — | Front/Rear Washer |
| J22 | 25 Amp Natural | — | Sunroof Module |
| M1 | — | 15 Amp Blue | Rear Center Brake Lamp/Brake Switch |
| M2 | — | 20 Amp Yellow | Front Fog Lamps |
| M3 | — | 20 Amp Yellow | Front/Rear Axle Locker, Vacuum Pump Motor |
| M4 | — | 10 Amp Red | Trailer Tow |
| M5 | — | 25 Amp Natural | Inverter |
| M6 | — | 20 Amp Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear | |
| M8 | — | 20 Amp Yellow | Front Heated Seat – If Equipped |
| M9 | — | 20 Amp Yellow | Rear Heated Seat – If Equipped |
| M10 | 15 Amp Blue | Ignition Off Draw — Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module -If Equipped | |
| M11 | — | 10 Amp Red | Climate Control System |
| M12 | — | 30 Amp Green | Amplifier/Radio |
| M13 | — | 20 Amp Yellow | Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch – If Equipped |
| M14 | — | 20 Amp Yellow | Trailer Tow – If Equipped |
| M15 | 20 Amp Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped | |
| M16 | — | 10 Amp Red | Airbag Module/Occupant Classification Module |
| M17 | — | 15 Amp Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | — | 15 Amp Blue | Right Tail/Park/Run Lamp |
| M19 | — | 25 Amp Natural | Powertrain |
| M20 | — | 15 Amp Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | — | 20 Amp Yellow | Powertrain |
| M22 | — | 10 Amp Red | Horn |
| M23 | — | 10 Amp Red | Horn |
| M24 | — | 25 Amp Natural | Rear Wiper |
| M25 | — | 20 Amp Yellow | Fuel Pump, Diesel Lift Pump – If Equipped |
| M26 | — | 10 Amp Red | Power Mirror Switch, Driver Window Switch |
| M27 | — | 10 Amp Red | Wireless Control Module, Keyless Entry Module |
| M28 | — | 10 Amp Red | Powertrain, Transmission Control Module |
| M29 | — | 10 Amp Red | Occupant Classification Module |
| M30 | — | 15 Amp Blue | Rear Wiper Module, Power Folding Mirror |
| M31 | — | 20 Amp Yellow | Back-Up Lamps |
| M32 | — | 10 Amp Red | Airbag Module, THATCHUM – If Equipped |
| M33 | — | 10 Amp Red | Powertrain |
| M34 | 10 Amp Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped | |
| M35 | — | 10 Amp Red | Heated Mirrors |
| M36 | — | 20 Amp Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | — | 10 Amp Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | — | 25 Amp Natural | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
| CB1 | – | 25 Amp Circuit Breaker | Power Windows |
2016
Assignment of fuses in the TIPM (2016)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| J1 | 40 Amp Green | – | Power Folding Seat |
| J2 | 30 Amp Pink | – | Power Liftgate Module |
| J3 | 30 Amp Pink | – | Rear Door Module |
| J4 | 25 Amp Clear | – | Driver Door Node |
| J5 | 25 Amp Clear | – | Passenger Door Node |
| J6 | 40 Amp Green | — | Antilock Brakes Pump/Stability Control System |
| J7 | 30 Amp Pink | — | Antilock Brakes Valve/Stability Control System |
| J8 | 40 Amp Green | – | Power Memory Seat – If Equipped |
| J9 | 40 Amp Green | Partial Zero Emissions Vehicle Motor/Flex Fuel – If Equipped | |
| J10 | 30 Amp Pink | Headlamp Wash/Manifold Tuning Valve – If Equipped | |
| J11 | 30 Amp Pink | — | Power Sliding Door Module/Anti-Theft Module – If Equipped |
| J12 | 30 Amp Pink | – | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60 Amp Yellow | – | Ignition Off Draw (IOD) – Main |
| J14 | 40 Amp Green | – | Rear Window Defogger |
| J15 | 40 Amp Green | – | Front Blower |
| J17 | 40 Amp Green | – | Starter Solenoid |
| J18 | 20 Amp Blue | – | Powertrain Control Module Trans Range |
| J19 | 60 Amp Yellow | – | Radiator Fan |
| J20 | 30 Amp Pink | – | Front Wiper LO/HI |
| J21 | 20 Amp Blue | – | Front/Rear Washer |
| J22 | 25 Amp Clear | – | Sunroof Module |
| M1 | – | 15 Amp Blue | Rear Center Brake Lamp/Brake Switch |
| M2 | – | 20 Amp Yellow | Front Fog Lamps |
| M3 | – | 20 Amp Yellow | Front/Rear Axle Locker, Vacuum Pump Motor |
| M5 | – | 25 Amp Clear | Inverter |
| M6 | 20 Amp Yellow | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) | |
| M7 | 20 Amp Yellow | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear | |
| M8 | – | 20 Amp Yellow | Front Heated Seat – If Equipped |
| M9 | – | 20 Amp Yellow | Rear Heated Seat – If Equipped |
| M10 | 15 Amp Blue | Ignition Off Draw — Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped | |
| M11 | – | 10 Amp Red | Climate Control System |
| M12 | – | 30 Amp Green | Amplifier/Radio |
| M13 | 20 Amp Yellow | Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch – If Equipped | |
| M14 | – | 20 Amp Yellow | Trailer Tow – If Equipped |
| M15 | 20 Amp Yellow | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped | |
| M16 | 10 Amp Red | Airbag Module/Occupant Classification Module | |
| M17 | – | 15 Amp Blue | Left Tail/License/Park Lamp, Running Lamps |
| M18 | – | 15 Amp Blue | Right Tail/Park/Run Lamp |
| M19 | – | 25 Amp Clear | Powertrain |
| M20 | 15 Amp Blue | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel | |
| M21 | – | 20 Amp Yellow | Powertrain |
| M22 | – | 10 Amp Red | Horn |
| M23 | – | 10 Amp Red | Horn |
| M24 | – | 25 Amp Clear | Rear Wiper |
| M25 | – | 20 Amp Yellow | Fuel Pump, Diesel Lift Pump – If Equipped |
| M26 | – | 10 Amp Red | Power Mirror Switch, Driver Window Switch |
| M27 | — | 10 Amp Red | Wireless Control Module, Keyless Entry Module |
| M28 | – | 10 Amp Red | Powertrain, Transmission Control Module |
| M29 | – | 10 Amp Red | Occupant Classification Module |
| M30 | – | 15 Amp Blue | Rear Wiper Module, Power Folding Mirror |
| M31 | – | 20 Amp Yellow | Back-Up Lamps |
| M32 | – | 10 Amp Red | Airbag Module, THATCHUM – If Equipped |
| M33 | – | 10 Amp Red | Powertrain |
| M34 | 10 Amp Red | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped | |
| M35 | – | 10 Amp Red | Heated Mirrors |
| M36 | – | 20 Amp Yellow | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | — | 10 Amp Red | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | — | 25 Amp Clear | Door Lock/Unlock Motors, Liftgate Lock/ Unlock Motors |
| CB1 | – | 25 Amp Circuit Breaker | Power Windows |
