Chrysler 42LE (A606) – ATSG (Automatic Transmission Service Group)

The 42LE 4-speed transaxle has many similarities to the A-604. Both units are fully electronic controlled. The 42LE is mounted in the vehicle in the same fashion as rear drive transmissions.

That is Longitudinally, whereas the A-604 is transverse mounted. Since the front axle of the vehicle passes through the bell housing, the pump support (stator) shaft and the turbine shaft are longer than the A604. This unit is unique in that it has two sumps, one for the transmission fluid and one for the differential fluid.

The PRNDL and Neutral Safety Switches are mounted on the valve body inside the transaxle case. There is a chain drive from the output shaft to the pinion shaft in a similar manner that we have seen on other transaxles.

Applications:

  • 1999-2004 Chrysler 300M
  • 1993-2004 Chrysler Concorde
  • 1994-2001 Chrysler LHS
  • 2001-2002 Chrysler Prowler
  • 1994-1996 Chrysler New Yorker
  • 1993-2004 Dodge Intrepid
  • 1993-1997 Eagle Vision
  • 1997-2001 Plymouth Prowler

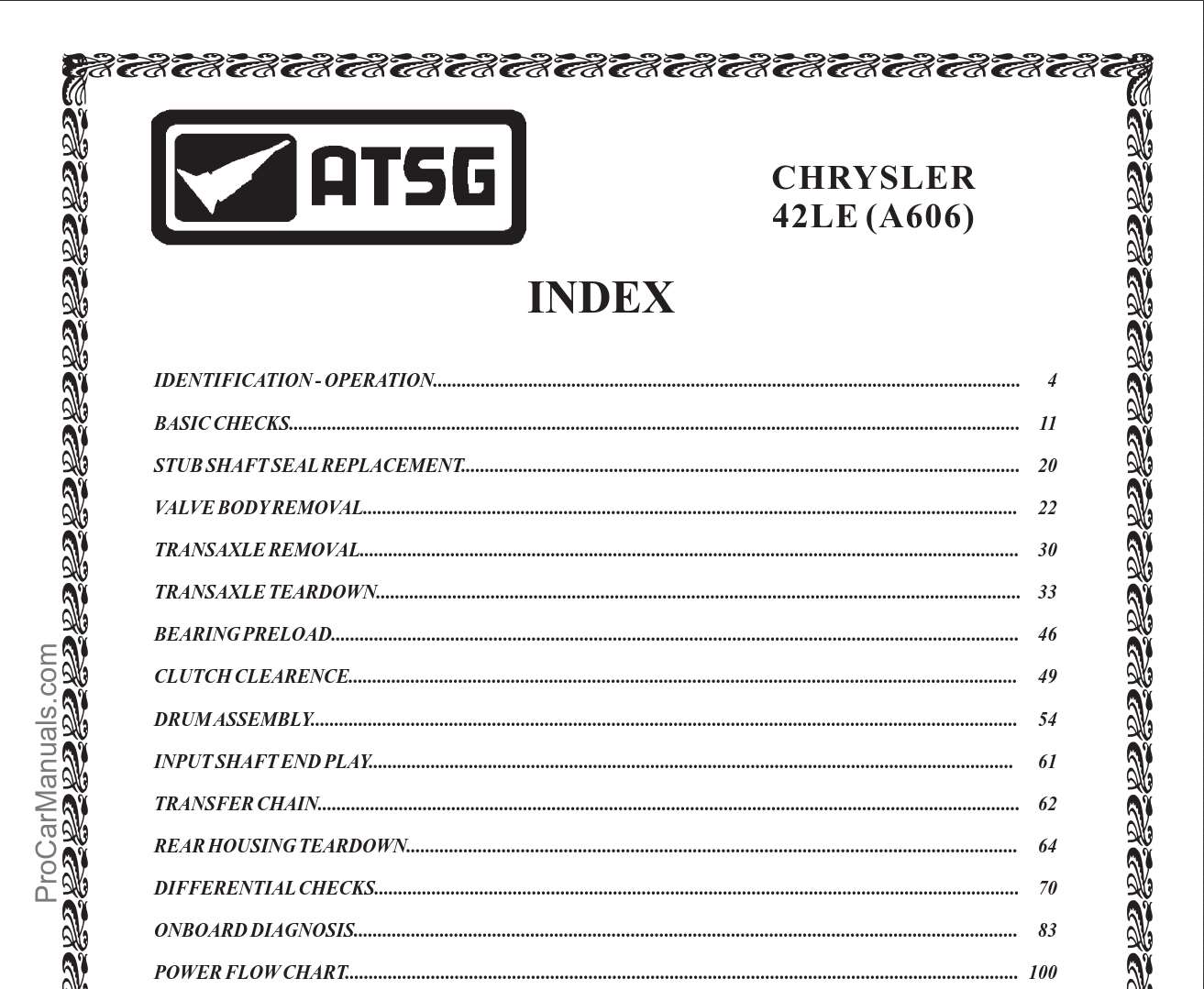

CONTENTS

  • IDENTIFICATION – OPERATION
  • BASIC CHECKS
  • STUB SHAFT SEAL REPLACEMENT
  • VALVE BODY REMOVAL
  • TRANSAXLE REMOVAL
  • TRANSAXLE TEARDOWN
  • BEARING PRELOAD
  • CLUTCH CLEARENCE
  • DRUM ASSEMBLY
  • INPUT SHAFT END PLAY
  • TRANSFER CHAIN
  • REAR HOUSING TEARDOWN
  • DIFFERENTIAL CHECKS
  • ONBOARD DIAGNOSIS
  • POWER FLOW CHART
  • SPECIFICATIONS

Language: English
Format: PDF
Pages: 104

Chrysler 42LE (A606) – ATSG (Automatic Transmission Service Group) PDF free online
