In this article we take a look at the first generation Chrysler 200, produced from 2011 to 2014. Here you will find the Chrysler 200 2011, 2012, 2013 and 2014 fuse box outline, information on the location of the fuse boxes inside the car and the allocation of each fuse (fuse layout).
The fuses for the cigar lighter (power outlet) in the Chrysler 200 are fuses №11 (power outlet in centre armrest) and №16 (2011) or №13 (2012-2014) (cigar lighter) in the engine compartment fuse box.
Fuse box location

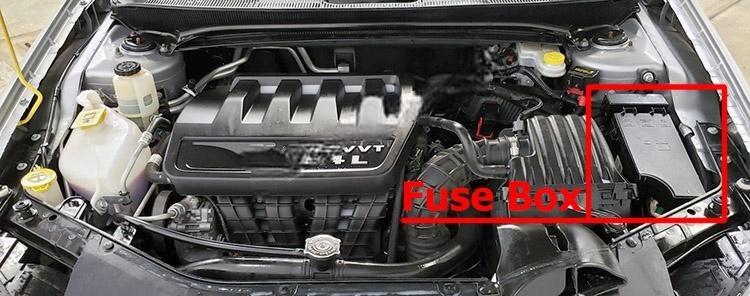

The Integrated Power Module is located in the engine compartment near the air cleaner assembly.
This center contains cartridge fuses and mini fuses.
A label that identifies each component may be printed on the inside of the cover.
Fuse box diagrams
2011

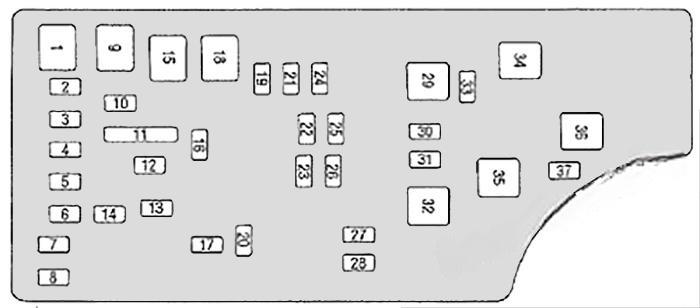

Assignment of fuses in the Integrated Power Module (2011)
| Cavity | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 40 Amp Green | — | Power Top Module -If Equipped |
| 2 | — | 20 Amp Yellow | AWD Module |
| 3 | — | 10 Amp Red | Center High Mounted Stop Light (CHMSL)/Brake Switch |
| 4 | — | 10 Amp Red | Ignition Switch |
| 5 | — | 20 Amp Yellow | Trailer Tow – If Equipped |
| 6 | — | 10 Amp Red | Power Mirror Switch/Climate Controls |
| 7 | — | 30 Amp Green | Ignition Off Draw (IOD) Sense 1 |
| 8 | — | 30 Amp Green | Ignition Off Draw (IOD) Sense 2 |
| 9 | 40 Amp Green | Battery Feed – Power Seats – If Equipped/ PZEV Air Pump – If Equipped | |
| 10 | — | 20 Amp Yellow | Instrument Panel/ Power Locks/Interior Lights |
| 11 | — | 15 Amp Lt Blue | Selectable Power Outlet (Inside Center Arm Rest) |
| 12 | — | 20 Amp Yellow | — |
| 13 | — | 20 Amp Yellow | Ignition |
| 14 | — | 10 Amp Red | Instrument Panel |
| 15 | 40 Amp Green | — | Radiator Fan Relay |
| 16 | — | 15 Amp Lt. Blue | Cigar Lighter/ Sunroof – If Equipped |
| 17 | — | 10 Amp Red | Wireless Control Module (WCM)/ Clock/Steering Control Module (SCM) |
| 18 | 40 Amp Green | — | Auto Shutdown (ASD) Relay |
| 19 | — | 20 Amp Yellow | Audio Amplifier – If Equipped |
| 20 | — | 15 Amp Lt. Blue | Radio |
| 21 | — | 10 Amp Red | Siren – If Equipped |
| 22 | — | 10 Amp Red | Ignition Run – Climate Controls/Hot Cupholder – If Equipped |
| 23 | — | 15 Amp Lt. Blue | Auto Shutdown (ASD) Relay 3 |
| 24 | — | 25 Amp Natural | Sunroof – If Equipped |
| 25 | — | 10 Amp Red | Ignition Run — Heated Mirrors – If Equipped |
| 26 | — | 15 Amp Lt. Blue | Auto Shutdown (ASD) Relay 2 |
| 27 | — | 10 Amp Red | Ignition Run – Occupant Classification Module (OCM)/ Occupant Restraint Controller (ORC) |
| 28 | — | 10 Amp Red | Ignition Run — Occupant Classification Module (OCM)/ Occupant Restraint Controller (ORC) |
| 29 | — | — | Hot Car (No Fuse Required) |
| 30 | — | 20 Amp Yellow | Ignition Run -Heated Seats – If Equipped |
| 31 | — | 10 Amp Red | Headlamp Washer -If Equipped |
| 32 | 30 Amp Pink | — | Auto Shutdown (ASD) Relay 1 |
| 33 | — | 10 Amp Red | Switch Bank/ Diagnostic Link Connector/ Powertrain Control Module (PCM) |
| 34 | 30 Amp Pink | — | Anti-Lock Brakes (ABS) Module – If Equipped/Electronic Stability Control (ESC) Module – If Equipped |
| 35 | 40 Amp Green | — | Anti-Lock Brakes (ABS) Module – If Equipped/Electronic Stability Control (ESC) Module – If Equipped |
| 36 | 30 Amp Pink | — | Passenger Door Module (PDM)/Driver Door Module (DDM) |
| 37 | — | 25 Amp Natural | Power Top Module -If Equipped |
2012, 2013 and 2014

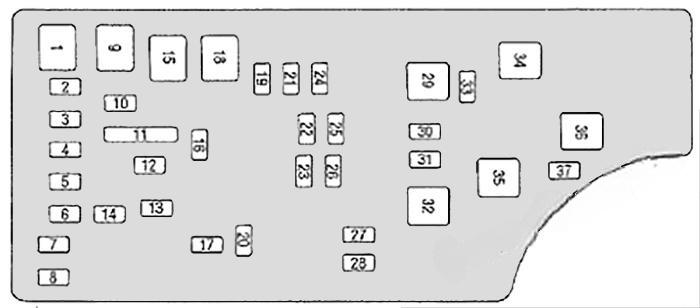

Assignment of fuses in the Integrated Power Module (2012-2014)
| Cavity | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 40 Amp Green | — | Power Top Module -If Equipped |
| 2 | — | 20 Amp Yellow | Brake Vacuum Pump |
| 3 | 10 Amp Red | Center High Mounted Stop Light (CHMSL)/ Brake Switch | |
| 4 | — | 10 Amp Red | Ignition Switch |
| 5 | — | 20 Amp Yellow | Trailer Tow – If Equipped |
| 6 | — | 10 Amp Red | Power Mirror Switch/ Climate Controls |
| 7 | — | 30 Amp Green | Ignition Off Draw (IOD) Sense 1 |
| 8 | — | 30 Amp Green | Ignition Off Draw (IOD) Sense 2 |
| 9 | 40 Amp Green | Battery Feed – Power Seats – If Equipped | |
| 10 | 20 Amp Yellow | Instrument Panel/ Power Locks/ Interior Lights | |
| 11 | 15 Amp Lt Blue | Selectable Power Outlet (Inside Center Arm Rest) | |
| 12 | — | 20 Amp Yellow | — |
| 13 | — | 20 Amp Yellow | Ignition/Cigar Lighter |
| 14 | — | 10 Amp Red | Instrument Panel |
| 15 | 40 Amp Green | — | Radiator Fan Relay |
| 16 | — | 15 Amp Lt. Blue | Sunroof – If Equipped |
| 17 | 10 Amp Red | Wireless Control Module (WCM)/ Clock/Steering Control Module (SCM) | |
| 18 | 40 Amp Green | — | Auto Shutdown (ASD) Relay |
| 19 | — | 20 Amp Yellow | Audio Amplifier -If Equipped |
| 20 | — | 15 Amp Lt. Blue | Radio |
| 21 | — | 10 Amp Red | Siren – If Equipped |
| 22 | 10 Amp Red | Ignition Run -Climate Controls/ Hot Cupholder -If Equipped | |
| 23 | — | 15 Amp Lt. Blue | Auto Shutdown (ASD) Relay 3 |
| 24 | — | 25 Amp Natural | Sunroof – If Equipped |
| 25 | 10 Amp Red | Ignition Run — Heated Mirrors -If Equipped | |
| 26 | — | 15 Amp Lt. Blue | Auto Shutdown (ASD) Relay 2 |
| 27 | 10 Amp Red | Ignition Run -Occupant Classification Module (OCM)/ Occupant Restraint Controller (ORC) | |
| 28 | 10 Amp Red | Ignition Run — Occupant Classification Module (OCM)/ Occupant Restraint Controller (ORC) | |
| 29 | — | — | Hot Car (No Fuse Required) |
| 30 | — | 20 Amp Yellow | Ignition Run – Heated Seats – If Equipped |
| 31 | — | — | Spare |
| 32 | 30 Amp Pink | — | Auto Shutdown (ASD) Relay 1 |
| 33 | 10 Amp Red | Switch Bank/ Diagnostic Link Connector/ Powertrain Control Module (PCM) | |
| 34 | 30 Amp Pink | Anti-Lock Brakes (ABS) Module – If Equipped/Electronic Stability Control (ESC) Module – If Equipped | |
| 35 | 40 Amp Green | Anti-Lock Brakes (ABS) Module – If Equipped/Electronic Stability Control (ESC) Module – If Equipped | |
| 36 | 30 Amp Pink | Passenger Door Module (PDM)/Driver Door Module (DDM) | |
| 37 | — | 25 Amp Natural | Power Top Module -If Equipped |
