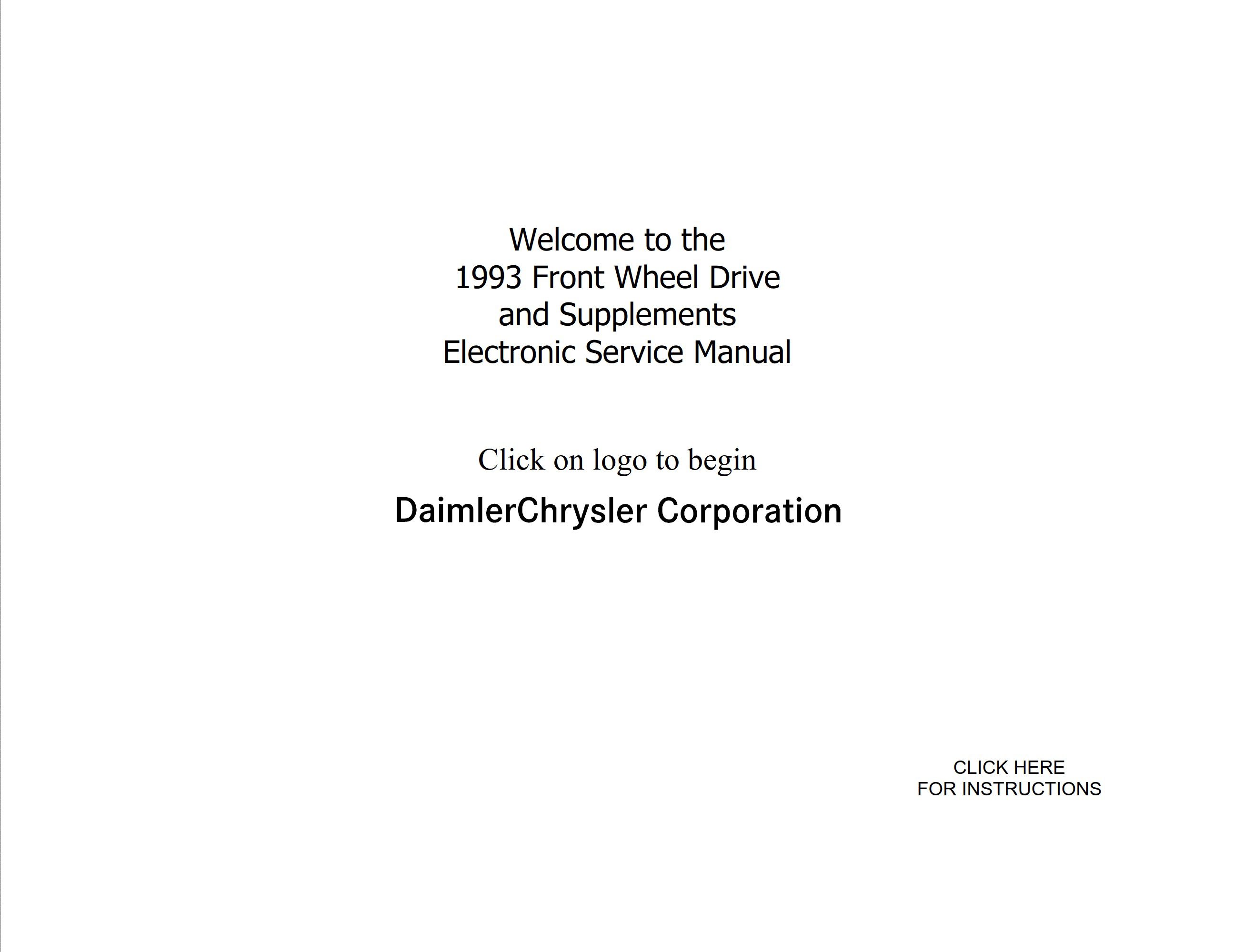

Chevrolet Plymouth Acclaim and Dynasty and LeBaron 1993 Service Manual

1993 Chevrolet Plymouth Acclaim, Dynasty, LeBaron Service Manual PDF. The information contained in this Service Manual has been prepared for the professional automotive technician involved in daily repair operations. Information describing the operation and use of standard and optional equipment is included in the Owner’s Manual provided with the vehicle.

These diagrams contain the latest information at the time of publication and incorporate the wiring schematic for the basic vehicle and available optional equipment.

The diagrams are grouped by body type and sales division. The body codes are explained in the General Information section. (Example—AP-D, P=Shadow, Sundance). To locate a system or component refer to the black index tabs on the next page. The tab will assist you in locating the desired area of the manual.

An alphabetical index is provided at the beginning of each section to help you in locating a system or component. All diagrams are identified by SHEET NUMBER which is found in the lower right- or left-hand corner of the page.

CONTENTS:

  • ENGINE, CHASSIS BODY
  • ELECTRICAL, FUEL EMISSION SYSTEMS
  • WIRING DIAGRAMS
  • SUPPLEMENTS

Language: English
Format: PDF
Pages: 2438

Chevrolet Plymouth Acclaim and Dynasty and LeBaron 1993 Service Manual
