Chevrolet Captiva Electrical Wiring Diagrams

Engine And Charge Start System

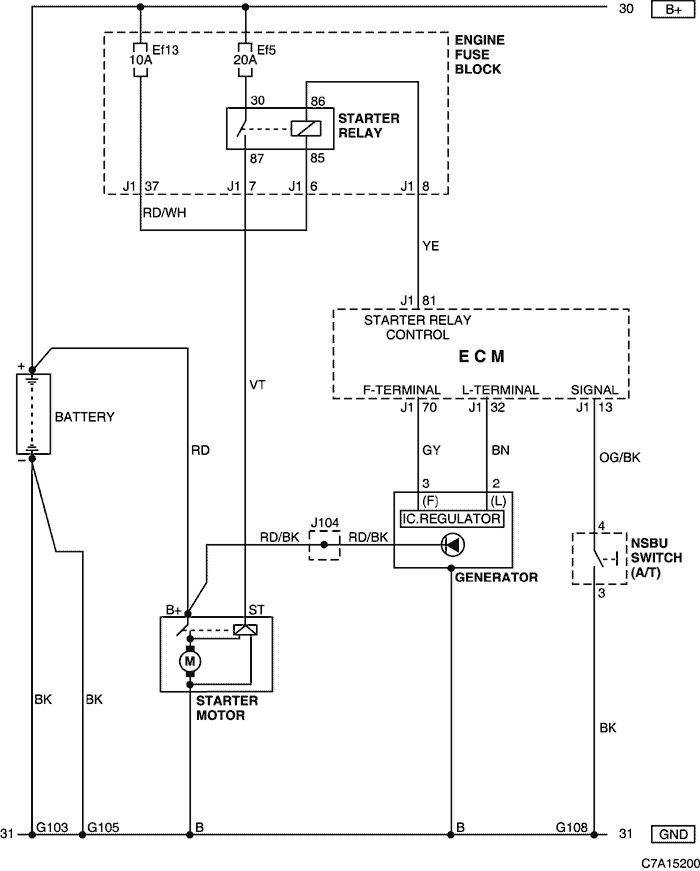

Battery, Starter, Generator And Switch Circuit Nsbu: Fam Ii 2.4d (Ld9)

Battery, Starter, Generator And Switch Circuit Nsbu: Fam Ii 2.4d (Ld9)
Battery, Starter, Generator And Switch Circuit Nsbu: Fam Ii 2.4d (Ld9)

Connection Information

CONNECTOR No.
(NUMBER AND COLOR)
CONNECTING WIRING HARNESS POSITION CONNECTOR
G103 Rechargeable battery Fuse block in the engine compartment
G105 Rechargeable battery On the block of cylinders
G108 Engine (FAM II) On the block of cylinders

Connector Identification Symbol & Pin Number Position

Connector Identification Symbol & Pin Number Position
Connector Identification Symbol & Pin Number Position

Location Of Connectors And Mass Connections L / R Engine (Ld9)

Location Of Connectors And Mass Connections L / R Engine (Ld9)
Location Of Connectors And Mass Connections L / R Engine (Ld9)

Battery, Starter, Generator And Switch Circuit Nsbu; 2.0 Diesel (Llw)

Battery, Starter, Generator And Switch Circuit Nsbu; 2.0 Diesel (Llw)

Connection Information

CONNECTOR No.
(NUMBER AND COLOR)
CONNECTING WIRING HARNESS POSITION CONNECTOR
G103 Rechargeable battery Fuse block in the engine compartment
G105 Rechargeable battery On the block of cylinders
GX106 (black/grey) Engine (DSL/HFV6) Over the head cylinder

Connector Identification Symbol & Pin Number Position

Connector Identification Symbol & Pin Number Position
Connector Identification Symbol & Pin Number Position

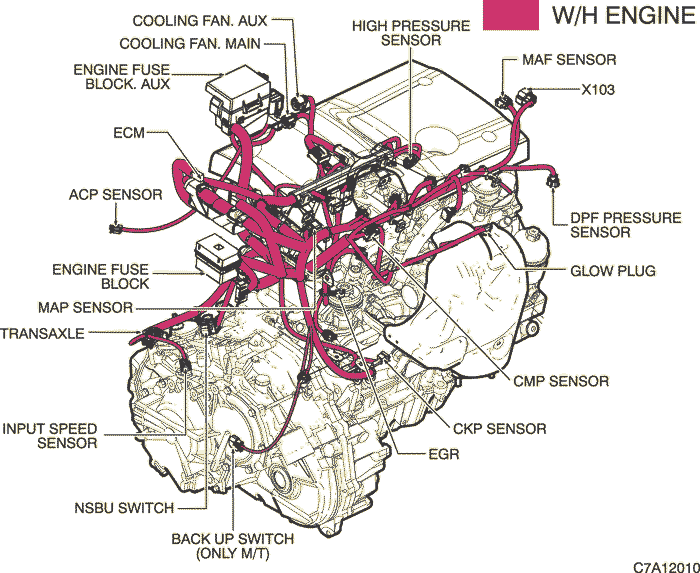

Location Of Connectors And Joint Connections W / R Engine (Llw)

Location Of Connectors And Joint Connections W / R Engine (Llw)
Location Of Connectors And Joint Connections W / R Engine (Llw)

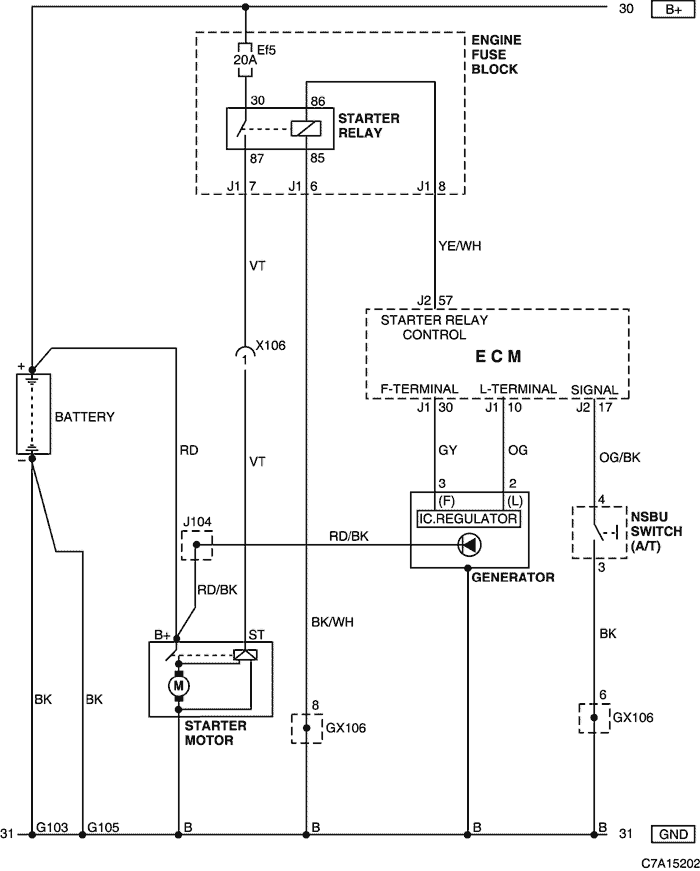

Battery, Starter, Generator And Switch Circuit Nsbu: Hfv6 3.2 (Lu1)

Battery, Starter, Generator And Switch Circuit Nsbu: Hfv6 3.2 (Lu1)
Battery, Starter, Generator And Switch Circuit Nsbu: Hfv6 3.2 (Lu1)

Information On Connector

CONNECTOR No.
(NUMBER AND COLOR)
CONNECTING WIRING HARNESS POSITION CONNECTOR
X 106 (7-pole, black) Engine-fuel injector (HVF6) Over the head cylinder
G103 Rechargeable battery Fuse block in the engine compartment
G105 Rechargeable battery On the block of cylinders
GX106 (black/grey) Engine (DSL/HFV6) Over the head cylinder

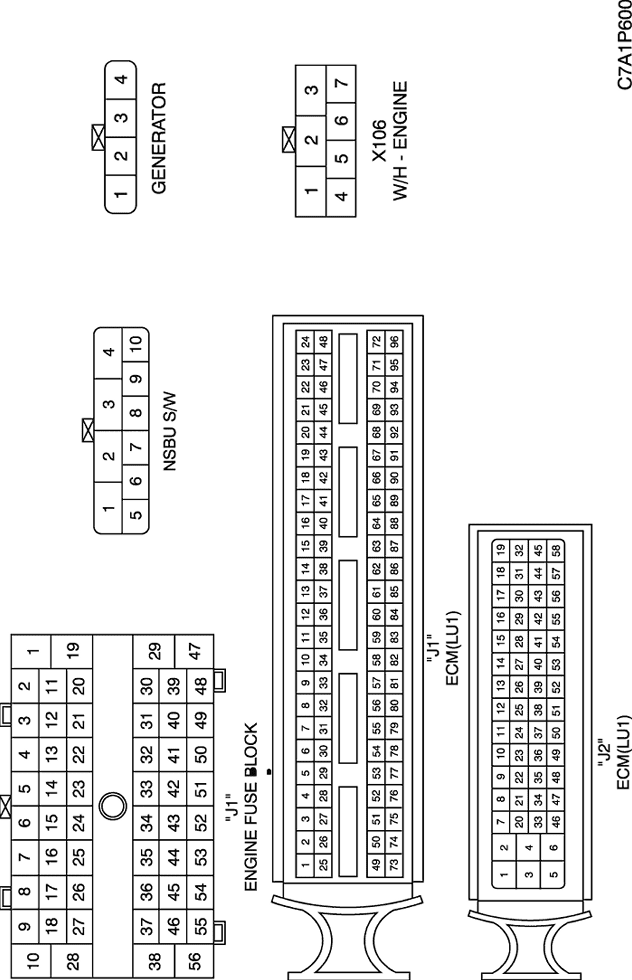

Connector Identification Symbol & Pin Number Position

Connector Identification Symbol & Pin Number Position

Location Of Connectors And Joint Connections W / R Engine (Lui)

Location Of Connectors And Joint Connections W / R Engine (Lui)
Location Of Connectors And Joint Connections W / R Engine (Lui)

Ignoster Circuit Circuit

Ignoster Circuit Circuit
Ignoster Circuit Circuit

Information On Connector

CONNECTOR No.
(NUMBER AND COLOR)
CONNECTING WIRING HARNESS POSITION CONNECTOR
X 101 (36-pole, black) Engine-the body Fuse block in the engine compartment
G103 Rechargeable battery Fuse block in the engine compartment
G105 Rechargeable battery On the block of cylinders

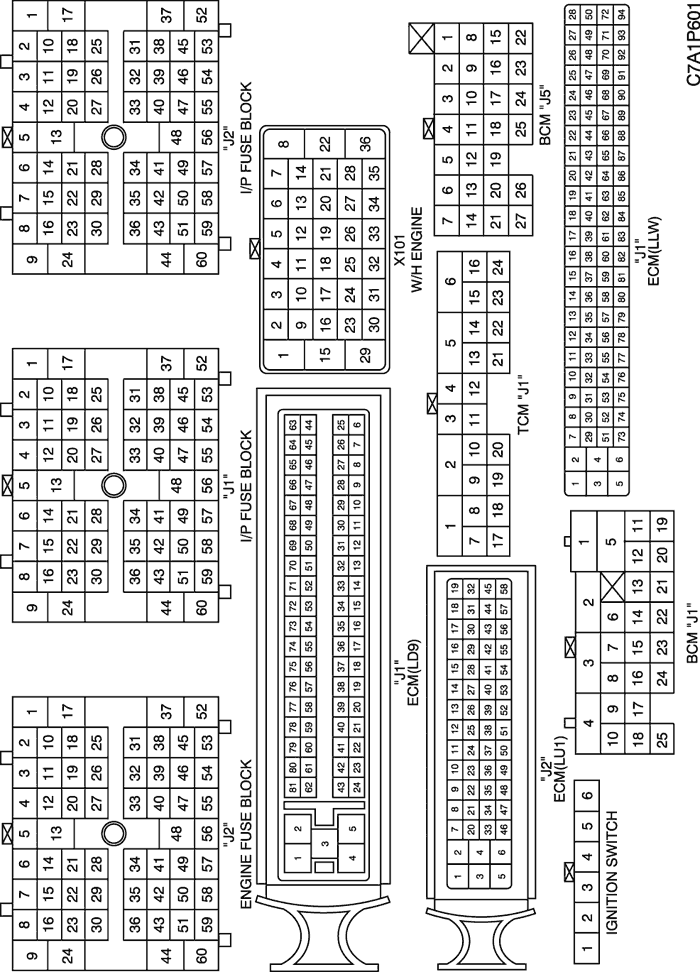

Symbol And Finding Contact Numbers

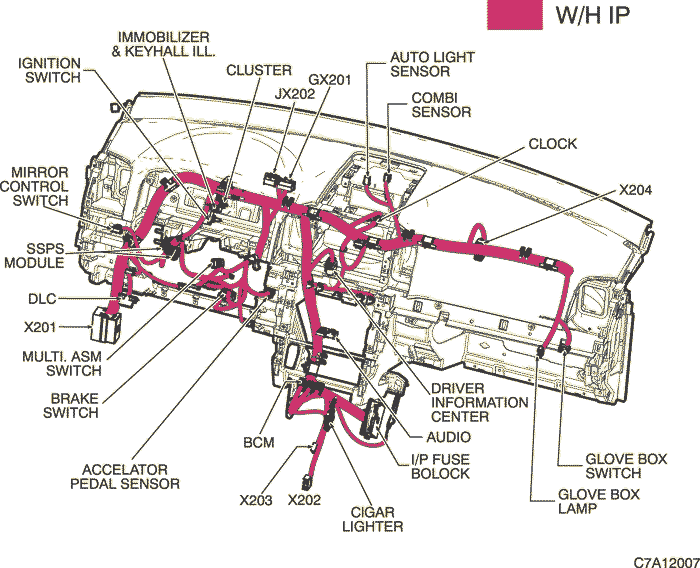

Location Of Connectors And Joint Connections R / W Instrument Panel

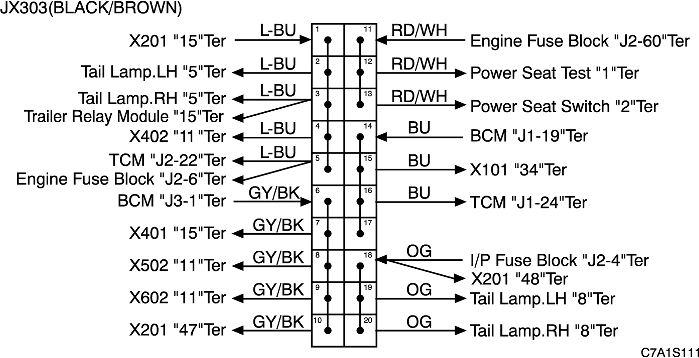

Contact Kit

Chevrolet Captiva Electrical Wiring Diagrams

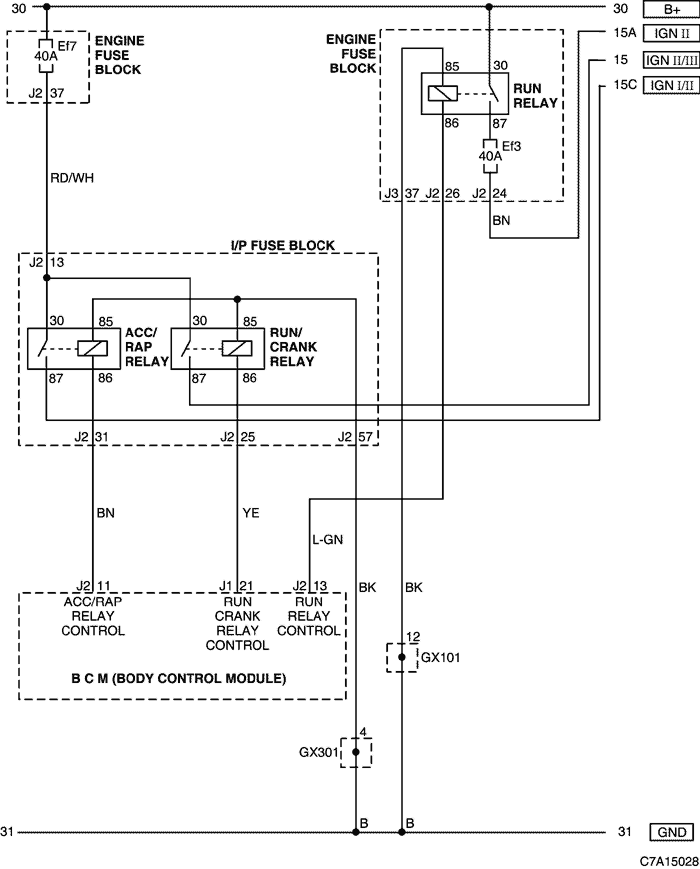

Power Supply Circuit

Information On Connector

CONNECTOR No.
(NUMBER AND COLOR)
CONNECTING WIRING HARNESS POSITION CONNECTOR
GX101 (black/grey) THE FRONT PART OF THE For left headlamp
GX301 (black/grey) Body Under the pillow right seat

Symbol And Finding Contact Numbers

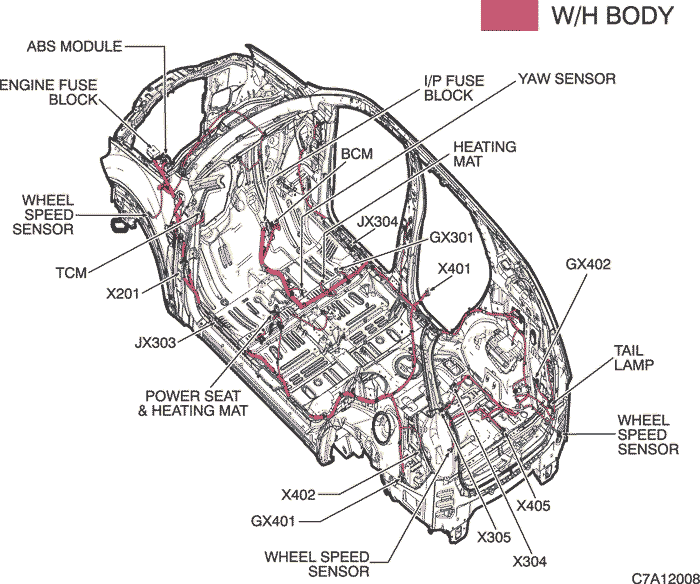

Location Of Connectors And Joints Of The Mass – W / O Bodies
