The Chery Tiggo 5 / EVO6 / DR6 / Cowin X5 (T21) compact crossover is produced from 2013 to 2021. Here you can find the Chery Tiggo 5 2013, 2014 and 2015 fuse box outline, check the location of the fuse boxes in the car and learn about the allocation of each fuse (fuse layout) and relay.
Passenger Compartment Fuse Boxes
Fuse Box A

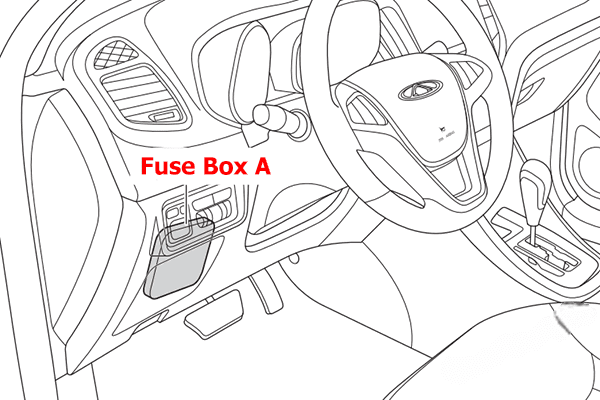

Instrument panel fuse and relay box A is located on the lower left side of instrument panel.

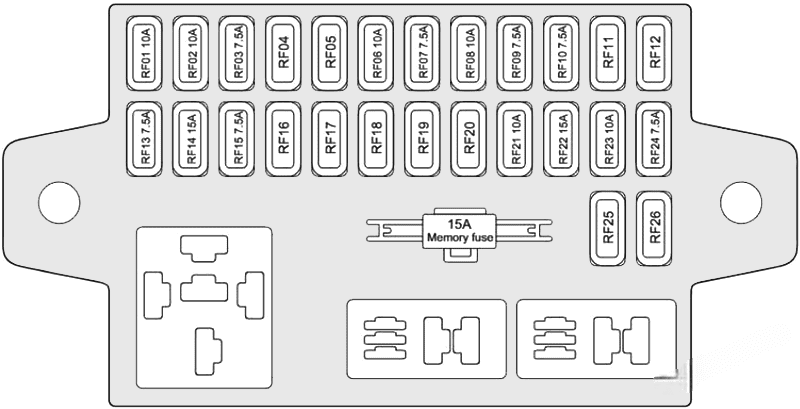

Assignment of the fuses in the instrument panel fuse and relay box A
| № | Description |
|---|---|
| RF01 | Reversing Radar |
| RF02 | SPORT Switch Backlight (for CVT Model) / Headlight Leveling Dial |
| RF03 | Back-up Light Relay Coil (for CVT Model) |
| RF04 | – |
| RF05 | – |
| RF06 | Yaw Sensor / Steering Angle Sensor / Instrument Cluster / Front Passenger Seat Belt Reminder Light / Diagnosis Connector / Engine Immobilizer / ESP Indication |
| RF07 | BCM/EPS/PEPS |
| RF08 | Airbag |
| RF09 | Brake Switch |
| RF10 | A/C Control Panel |
| RF11 | – |
| RF12 | – |
| RF13 | Relay Coils of Rear Defroster, Blower, Seat Heater / Audio System / BCM |
| RF14 | Cigarette Lighter |
| RF15 | Outside Rear View Mirror Adjustment Switch / Sunroof Switch |
| RF16 | – |
| RF17 | – |
| RF18 | – |
| RF19 | – |
| RF20 | – |
| RF21 | Automatic A/C Control Panel |
| RF22 | Audio System |
| RF23 | Instrument Cluster / Diagnosis Connector |
| RF24 | Key Switch |
| RF25 | – |
| RF26 | – |
Fuse Box B

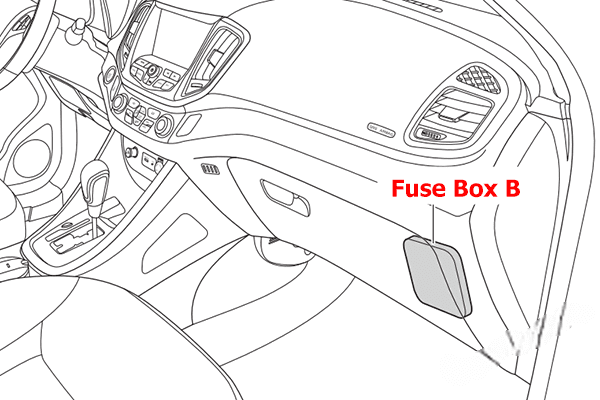

Instrument panel fuse and relay box B is located on the lower right side of instrument panel.

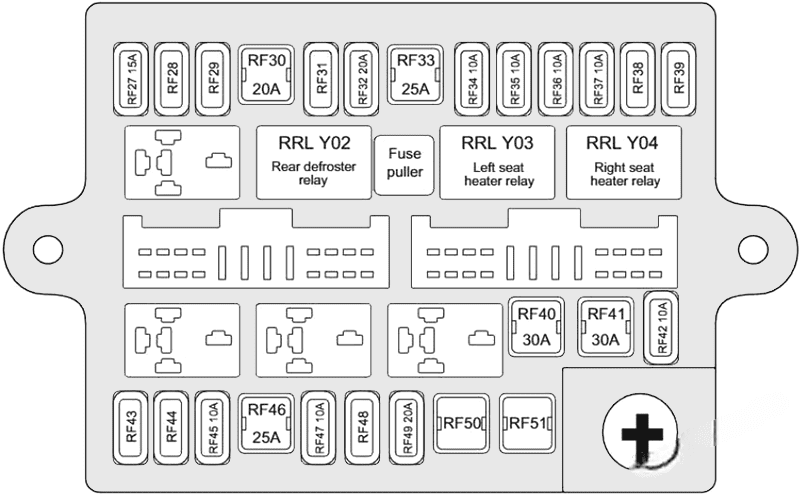

Assignment of the fuses in the instrument panel fuse and relay box B
| № | Description |
|---|---|
| RF27 | Spare |
| RF28 | – |
| RF29 | – |
| RF30 | IP Fuse and Relay Box A |
| RF31 | – |
| RF32 | Power Seat Adjustment |
| RF33 | Rear Defroster |
| RF34 | Left Seat Heater |
| RF35 | Brake Light Switch |
| RF36 | Reserve |
| RF37 | Right Seat Heater |
| RF38 | – |
| RF39 | – |
| RF40 | Right Window Jam Protection |
| RF41 | Left Window Jam Protection |
| RF42 | Outside Rear View Mirror Heating / Defrosting Feedback Signal |
| RF43 | – |
| RF44 | – |
| RF45 | Backup Power Supply |
| RF46 | Ignition Switch |
| RF47 | PEPS |
| RF48 | – |
| RF49 | Sunroof |
| RF50 | – |
| RF51 | – |
Engine Compartment Fuse Box
Fuse Box Location

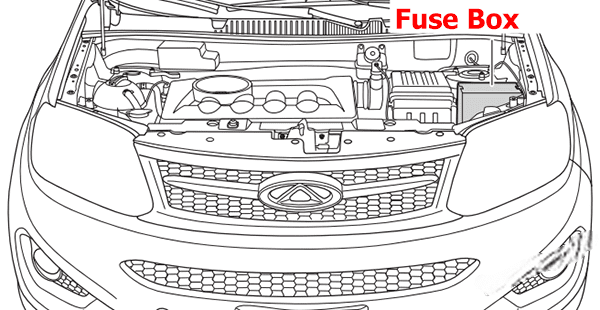

Engine compartment fuse and relay box is located on the left side of engine compartment and the rear side of left headlight.

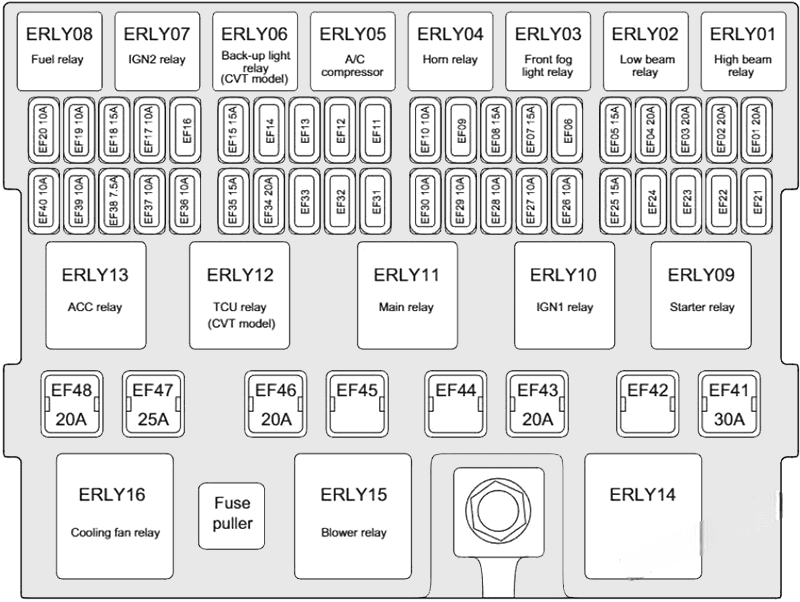

Fuse Box Diagram
Assignment of the fuses in the engine compartment
| № | Description |
|---|---|
| EF01 | Right Headlight High Beam |
| EF02 | Left Headlight High Beam |
| EF03 | Right Headlight Low Beam |
| EF04 | Left Headlight Low Beam |
| EF05 | Front Fog Light |
| EF06 | – |
| EF07 | Ignition Coil |
| EF08 | Injector / Camshaft Timing |
| EF09 | – |
| EF10 | A/C Compressor |
| EF11 | – |
| EF12 | – |
| EF13 | – |
| EF14 | – |
| EF15 | IGN2 |
| EF16 | – |
| EF17 | ECM/TCU (for CVT Model) |
| EF18 | Spare |
| EF19 | TCU (for CVT Model)/ECM |
| EF20 | Spare |
| EF21 | – |
| EF22 | – |
| EF23 | – |
| EF24 | – |
| EF25 | Horn |
| EF26 | Spare |
| EF27 | Air Flow Meter / Canister |
| EF28 | Back-up Light Switch (for MT Model) |
| EF29 | Alternator Excitation |
| EF30 | Back-up Light / Reversing Radar (for CVT Model) |
| EF31 | – |
| EF32 | – |
| EF33 | – |
| EF34 | IGN Power Supply |
| EF35 | Fuel Pump |
| EF36 | ABS/ESP |
| EF37 | Spare |
| EF38 | Fuel Pump Relay Coil / Fan Relay Coil |
| EF39 | Oxygen Sensor |
| EF40 | ECM |
| EF41 | Starter |
| EF42 | – |
| EF43 | IGN1 |
| EF44 | – |
| EF45 | – |
| EF46 | TCU (for CVT Model) |
| EF47 | ABS/ESP |
| EF48 | ACC |
