BAW Truck Fault Codes DTC

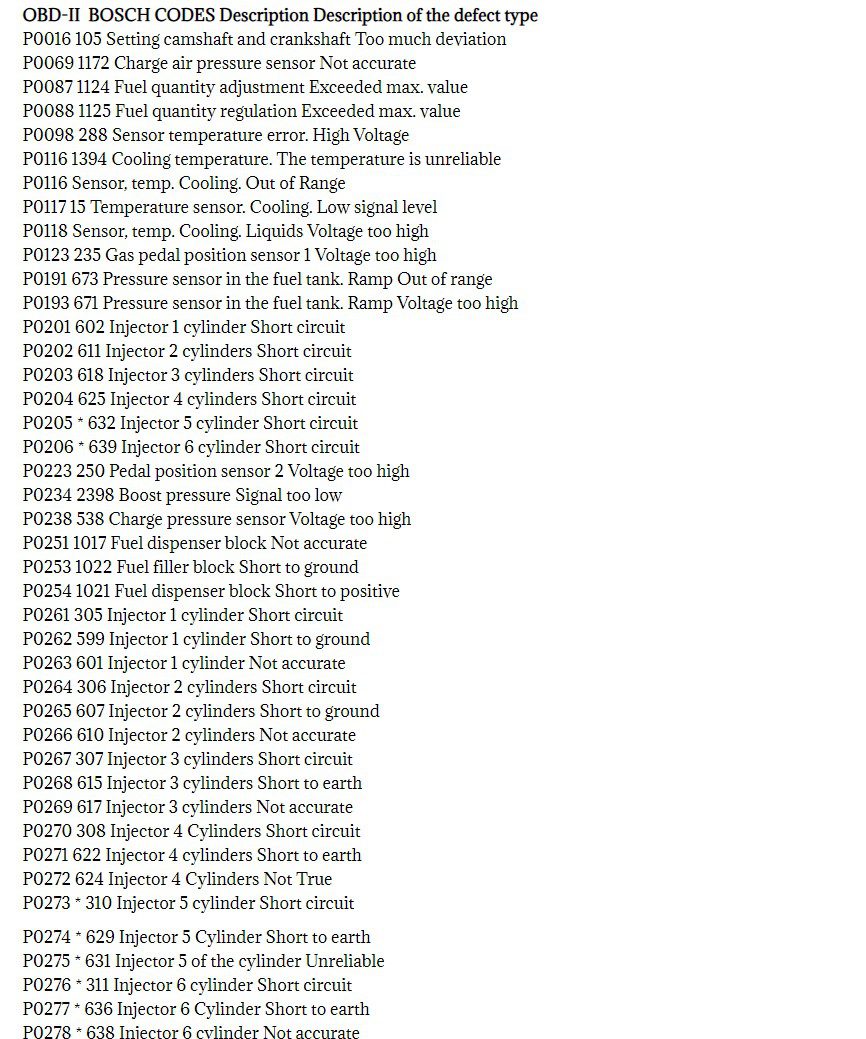

OBD-II BOSCH CODES Description Description of the defect type
P0016 105 Setting camshaft and crankshaft Too much deviation
P0069 1172 Charge air pressure sensor Not accurate
P0087 1124 Fuel quantity adjustment Exceeded max. value
P0088 1125 Fuel quantity regulation Exceeded max. value
P0098 288 Sensor temperature error. High Voltage
P0116 1394 Cooling temperature. The temperature is unreliable
P0116 Sensor, temp. Cooling. Out of Range
P0117 15 Temperature sensor. Cooling. Low signal level
P0118 Sensor, temp. Cooling. Liquids Voltage too high
P0123 235 Gas pedal position sensor 1 Voltage too high
P0191 673 Pressure sensor in the fuel tank. Ramp Out of range
P0193 671 Pressure sensor in the fuel tank. Ramp Voltage too high
P0201 602 Injector 1 cylinder Short circuit
P0202 611 Injector 2 cylinders Short circuit
P0203 618 Injector 3 cylinders Short circuit
P0204 625 Injector 4 cylinders Short circuit
P0205 * 632 Injector 5 cylinder Short circuit
P0206 * 639 Injector 6 cylinder Short circuit
P0223 250 Pedal position sensor 2 Voltage too high
P0234 2398 Boost pressure Signal too low
P0238 538 Charge pressure sensor Voltage too high
P0251 1017 Fuel dispenser block Not accurate
P0253 1022 Fuel filler block Short to ground
P0254 1021 Fuel dispenser block Short to positive
P0261 305 Injector 1 cylinder Short circuit
P0262 599 Injector 1 cylinder Short to ground
P0263 601 Injector 1 cylinder Not accurate
P0264 306 Injector 2 cylinders Short circuit
P0265 607 Injector 2 cylinders Short to ground
P0266 610 Injector 2 cylinders Not accurate
P0267 307 Injector 3 cylinders Short circuit
P0268 615 Injector 3 cylinders Short to earth
P0269 617 Injector 3 cylinders Not accurate
P0270 308 Injector 4 Cylinders Short circuit
P0271 622 Injector 4 cylinders Short to earth
P0272 624 Injector 4 Cylinders Not True
P0273 * 310 Injector 5 cylinder Short circuit
P0274 * 629 Injector 5 Cylinder Short to earth
P0275 * 631 Injector 5 of the cylinder Unreliable
P0276 * 311 Injector 6 cylinder Short circuit
P0277 * 636 Injector 6 Cylinder Short to earth
P0278 * 638 Injector 6 cylinder Not accurate
P0299 2397 Boost pressure Signal too high
P0336 104 Crankshaft Position Sensor Incorrect signal
P0340 99 Camshaft position sensor No signal
P0380 568 Glow plugs and heating circuit Error in heating circuit of glow plug, short-circuit
P0384 246 Overheating (burnout) of the command relay coil Short to positive
P0401 * 692 Exhaust gas recirculation system Inefficient EGR system
P0402 * 691 Exhaust gas recirculation system Exhaust gas recirculation system too high
P0503 471 Speed sensor Speed too high
P0504 699 Brake light switch (BLS) Not true
P0563 542 Battery voltage Voltage too high
P0607 283 Motor control unit Faulty
P0607 284 Motor control unit Faulty
P0607 285 Motor control unit Faulty
P0607 454 Motor control unit Internal error
P0607 480 Control unit (dispenser) of the injection pump No communication
P060A 279 Motor control unit Faulty
P060B 16 Internal Reference Voltage. Control unit Voltage too high
P060C 358 Motor control unit Out of range
P062B 591 Injector Output Cascades Faulty
P062B 595 Injector Output Cascades Faulty
P062F 280 Motor control unit Internal error
P062F 281 Motor control unit Internal error
P062F 282 Motor control unit Internal error
P0643 428 Sensor supply voltage 1 Voltage too high
P0647 680 Control with refrigerant compressor Short to positive
P0653 430 Sensor supply voltage 2 Voltage too high
P0686 357 Main relay Faulty
P0687 356 Main relay Faulty
P0856 32 Pulling adjustment. Motor torque
P1007 109 Torque monitoring / Requested engine torque Signal not valid
P1011 1121 Fuel quantity control Function violation
P1012 1122 Fuel quantity regulation Exceeded max. value
P1013 1123 Regulation of fuel quantity The pressure in the ramp below the minimum
P1200 1192 Injection time to cylinder 1 The limit of reg.
P1202 1194 Injection time in cylinder 2 The limit of reg.
P1203 298 Specific row 1 errors-engine stop Short circuit
P1204 579 Specific row 1 errors-engine stop Short to earth
P1204 1196 Injection time into cylinder 3 The control limit is exceeded
P1206 580 Specific row 1 errors-engine stop Not classified
P1206 1198 Injection time to cylinder 4 The limit of reg.
P1208 * 1200 Error in time for filling cylinder 5 Exceeding the maximum time set
P120A * 1202 Time error for filling the cylinder 6 Exceeding the maximum time set
P120B 300 Specific errors 2 rows-engine stop Short circuit
P120C 585 Specific errors 2 rows-engine stop Short to earth
P120C 1204 Injection time to cylinder 1 Control limit exceeded
P120E 586 Specific errors 2 rows-engine stop Short circuit
P120E 1206 Injection time in cylinder 2 Control limit exceeded
P1210 1208 Cylinder injection time 3 Control limit exceeded
P1212 1210 Injection time to cylinder 4 Control limit exceeded
P1214 * 1212 Cylinder injector calibration error 5 Exceeding the maximum time set
P1216 * 1214 Error in the cylinder injector calibration time 6 Exceeding the maximum time set
P1602 703 Sensor, temp. Cooling. Liquids Short to earth
P1605 1654 Tachometer signal error Short to positive
P1607 1656 Tachometer signal error No signal
P1607 286 Internal Reference Voltage. Control unit Voltage too high
P1608 261 Heating indicator lamp circuit Short to positive
P1608 287 Internal Reference Voltage. Control unit Voltage too low
P160C 1240 High pressure diagnosis Faulty
P1613 366 Start-up supervision Component. Wrong or exceeded time
P1614 370 Triggering control Unreliable
P1615 1280 High pressure diagnostics Function violation
P1616 425 Motor control unit Internal error
P1617 426 Motor control unit Internal error
P1618 427 Motor control unit Internal error
P1619 446 Signal lamp for defect presence Short to positive
P161D 689 Encoding options Error signal transmission
P161E 690 Coding options Unreliable
P161F 1216 Compression test Function violation
P2135 72 The pedal position sensor 2 The comparison of the sensor signal.1 / 2 is not valid
P2135 668 The gas pedal position sensor 1 The comparison of the sensor signal.1 / 2 is not valid
P2228 322 Atmospheric pressure sensor Voltage too low
P2229 319 Atmospheric pressure sensor Voltage too high
P2267 1173 Water content sensor in fuel Excess water level in FOTO
P2299 355 “Mountain brake” switch on the accelerator The signal is not valid
P2533 452 Output terminal 15 No voltage
* – not used in BAW 1044, 1065
