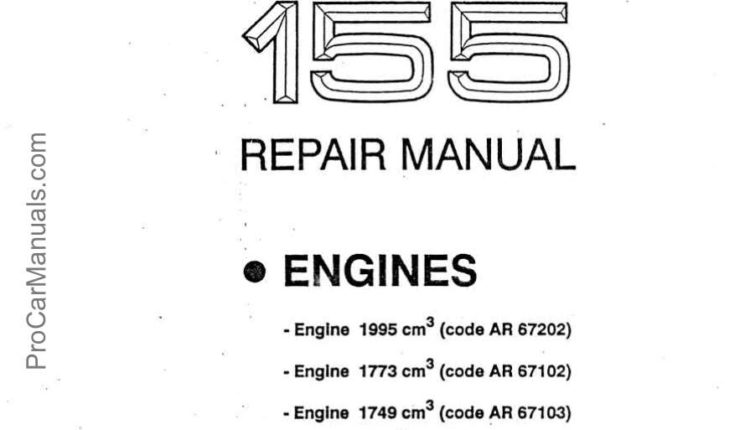

Alfa Romeo 155 Engine Repair Manual

Alfa Romeo 155 Engine Repair Manual PDF. Engine 1995 cm3 (code AR 67202), Engine 1773 cm3 (code AR 67102),  Engine 1749 cm3 (code AR 67103)

GENERALITIES

The engine is of the 4 cylinder in line type in light alloy with a double on-head camshaft, timing variator and double static ignition and injection controlled by a single BOSCH MOTRONIC M1.7 control unit.

The clutch – gearbox – differential group is connected behind the engine and forms an integral part of the engine unit. The engine itself is front mounted and set transversally with a 13′ inclination forwards.

It is installed on the frame by suspension type mounts and fixed by two elastic damping supports. A third support of the compass type secures it to the suspension crossmember.

A rod between the engine and the body prevents excessive shaking of the engine. The engines described below conform to the “USA 83“ exhaust emissions regulations.

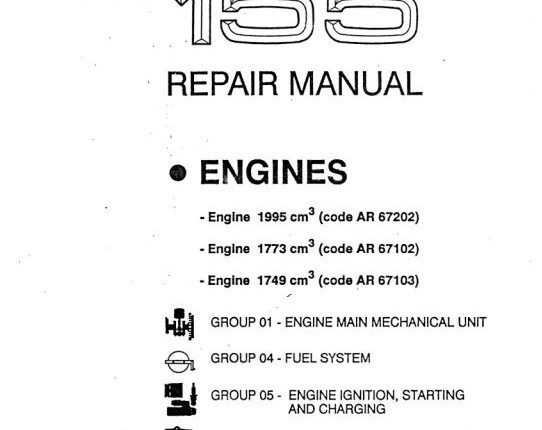

CONTENTS

  • GROUP 01 – ENGINE MAIN MECHANICAL UNIT
  • GROUP 04 – FUEL SYSTEM
  • GROUP 05- ENGINE IGNITION, STARTING AND CHARGING
  • GROUP 07 – ENGINE COOLING SYSTEM

Language: English
Format: PDF
Pages: 62

Alfa Romeo 155 Engine Repair Manual PDF free online
